12 Disassembly Instructions
12.1 Indoor unit
No.
Parts name
Procedures
Remarks
1
Front panel
How to remove the front
panel.
1) Pull the below side of
the panel and release the
clips. Then remove the
front panel.
2) Remove the filter and
horizontal louver.
3) Remove the three
fixing screws.
4) Remove the cover
(one screw).
5) Lift the panel frame
and release the two
connectors. One is for the
display board ass’y. The
other is for the switch
board. Then remove the
panel frame assembly.

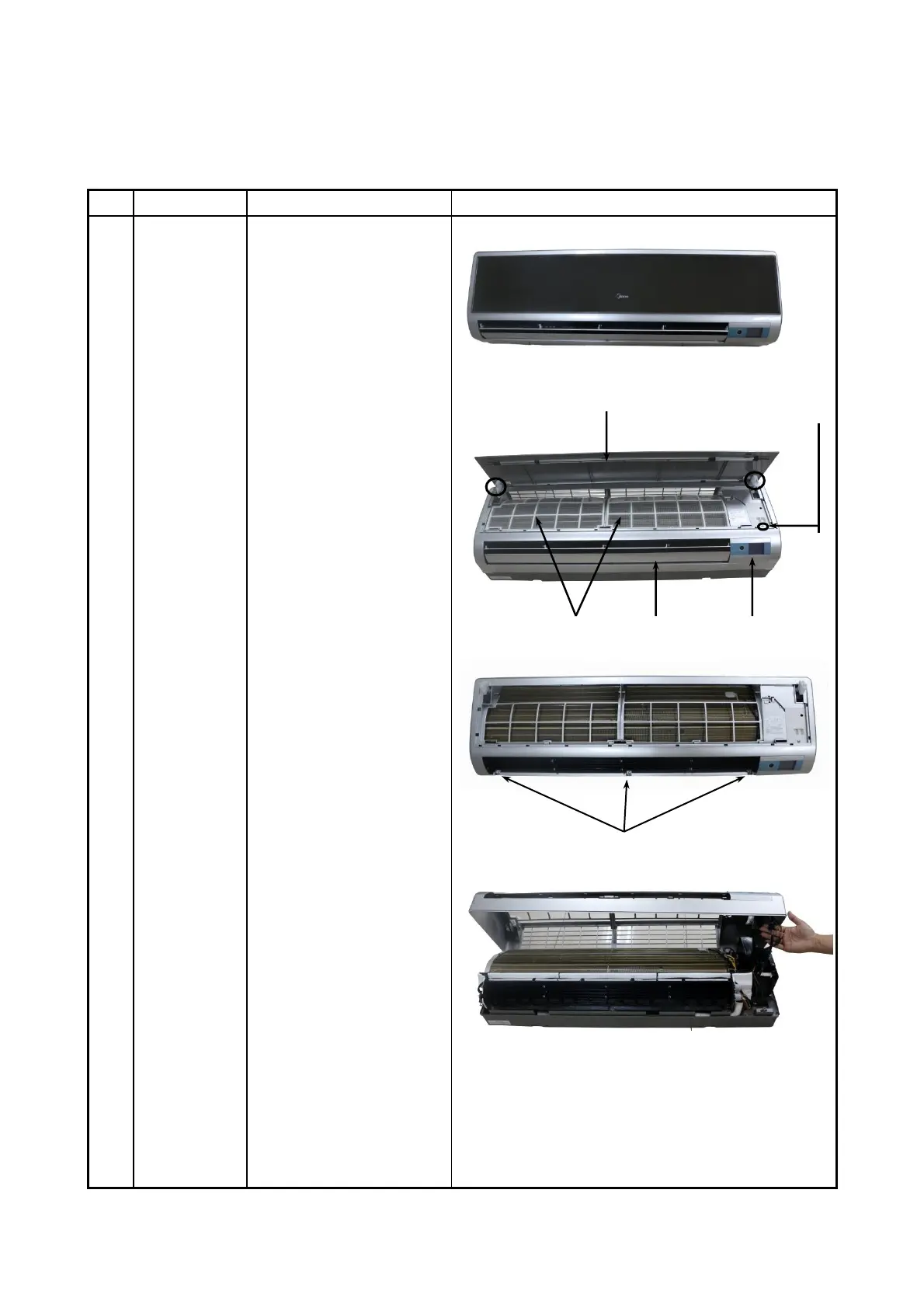

Overview:
Three screws fixing
the panel frame assembly
Clip
One screw
fixing the cover
Clip
Panel
Filter
Display panel
Horizontal louver
