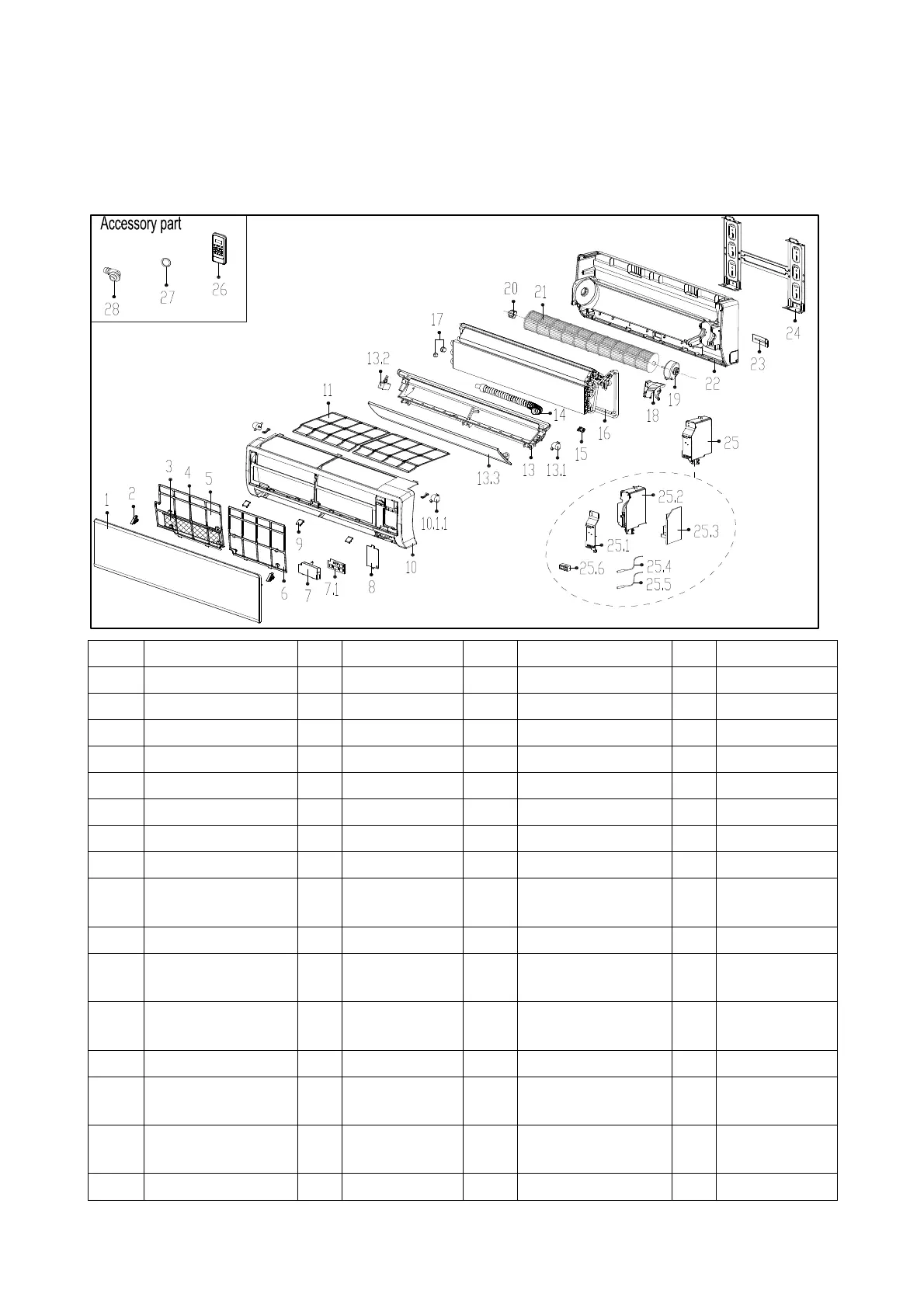

11. Exploded View(Version of 2013.05.08)
11.1 Indoor unit
MSV1-09HRFN1-MT0W:
No.
Part Name
Qty
BOM Code
No.
Part Name
Qty
BOM Code
1
Panel assembly
1
201132590008
16
Evaporator assembly
1
201532390036
2
Hinge Slide groove
2
201132500010
17
Pipe nut
1
201600330002
3
Air cleaner
1
201131410703
17
Pipe nut
1
201600330001
4
Bracket of air filter
1
201132200713
18
Fan motor cover
1
201132500017
5
Air filter(left)
1
201132500013
19
Asynchronous motor
1
202400370022
6
Air filter(right)
1
201132500011
20
Bearing base
1
202730100201
7
Display box assembly
1
203332590183
21
Cross flow fan
1
201100200106
7.1
Display board
ssembly
1
201332590136
22
Chassis assembly
1
201132500007
8
Cover of indoor
electronic control box
1
201132500012
23
Pipe clamp board
1
201232500001
9
Screw cap
3
201132500055
24
Installation plate
1
201232590025
10
Panel frame
assembly
1
201132501024
25
Electronic control box
assembly
1
203332390677
10.1
Panel frame
assembly
1
201132501131
25.1
Cover of electronic
control box
1
201132500021
10.1.1
Louver motor
1
202400200105
25.2
Electronic control box
1
201132500022
11
Air inlet grille
assembly
1
201132500054
25.3
Main control board
assembly
1
201332390823
13
Air outlet assembly
1
201132590968
25.4
Ambient temperature
sensor assembly
1
202433190000
13.1
Louver motor
1
202400200017
25.5
Pipe temperature
ensor assembly
1
202301300080
