Fan ass’y
How to remove the fan
ass’y.
1) After remove the
panel plate following
procedure 1, remove the
hex nut fixing the fan and
then remove the fan.
2) Unfix the hooks and
then open the electronic
control box cover.

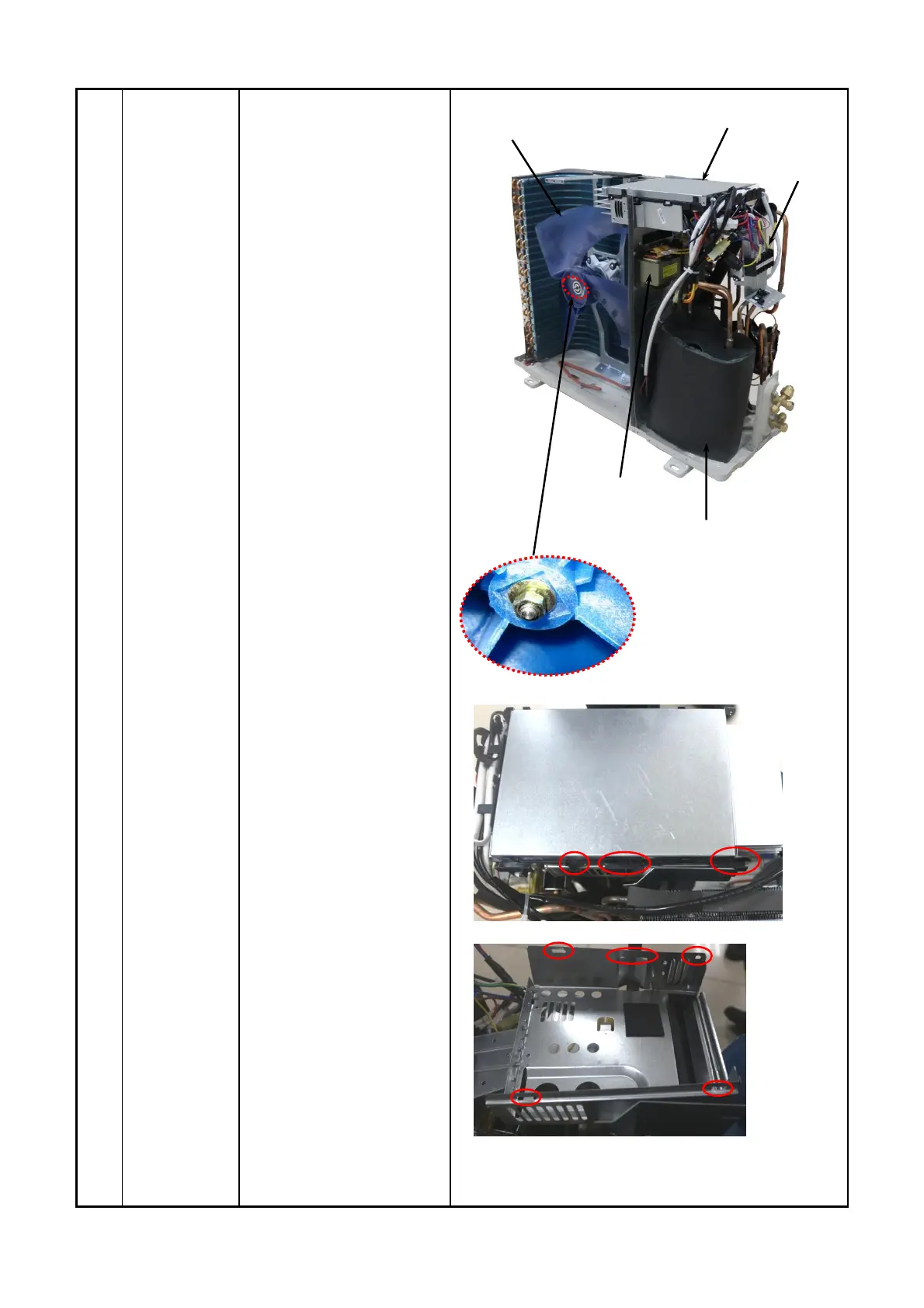

Fan assy
Compressor and liquid-gas separator
Electronic control box
Nut fixing the fan
Terminals
Two reactors
