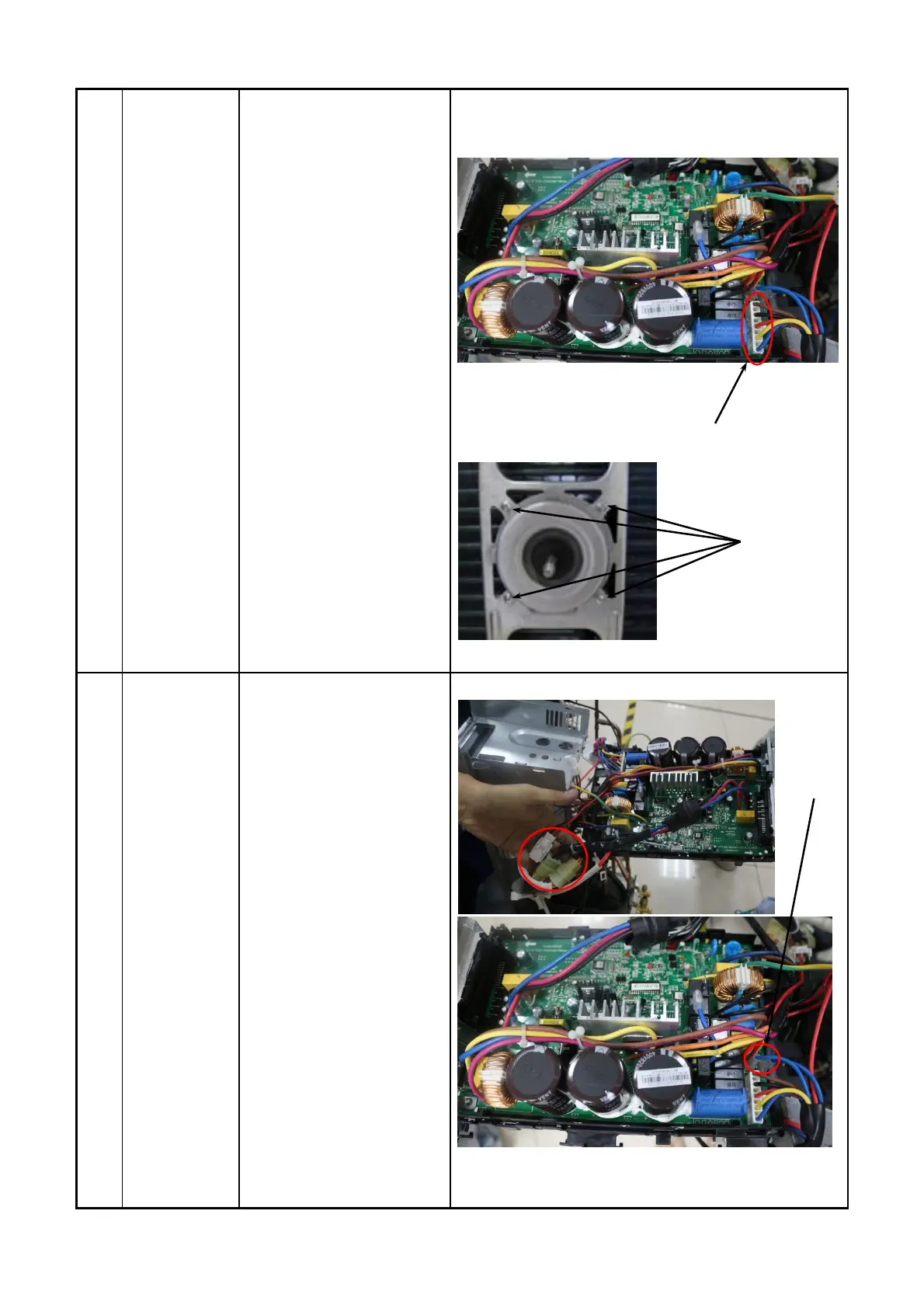

3) Disconnect the
connector for fan motor
from the electronic control
board.
4) Remove the four
fixing screws of the fan
motor.
5) Then remove the fan
motor.
3
Electrical
parts
How to remove the
electrical parts.
1) After finish work of
item 1 and item 2, remove
the three connectors for
the compressor and the
reactors and the
compressor crankcase
heater.
2) Pull out the two blue
wires connected with the
four way valve.
Four screws
Two blue
wires of
four way
valve.
Fan motor connector
