Midea MSV1-09HRFN1-MT0W

107
2

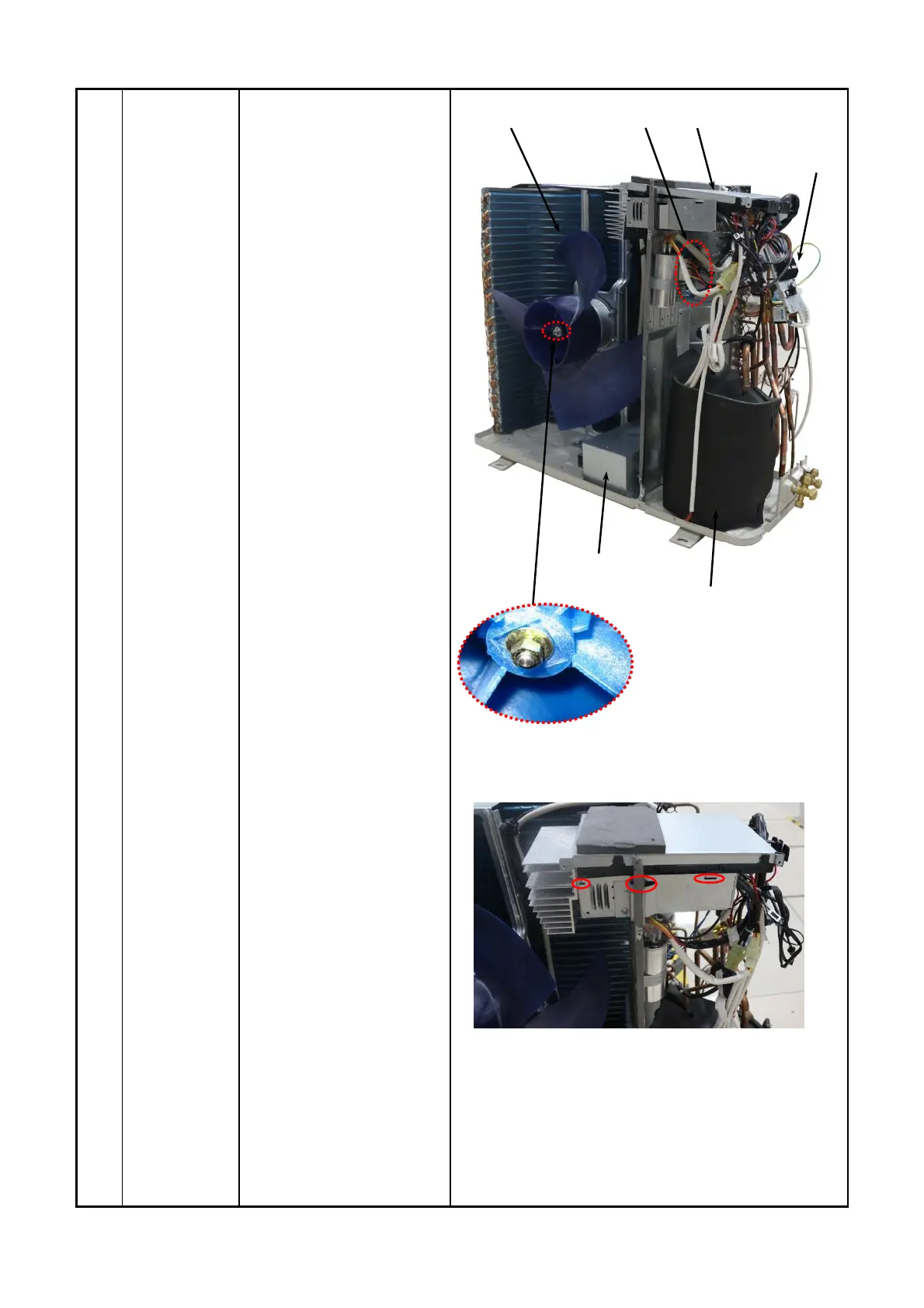

Fan ass’y
How to remove the fan
ass’y.
1) After remove the panel
plate following procedure
1, remove the hex nut
fixing the fan and then
remove the fan.
2) Unfix the hooks and
then open the electronic
control box cover.
LAK board(optional)
Compressor and liquid-gas separator
Electronic control box
Nut fixing the fan
Terminals
Two reactors
Fan
