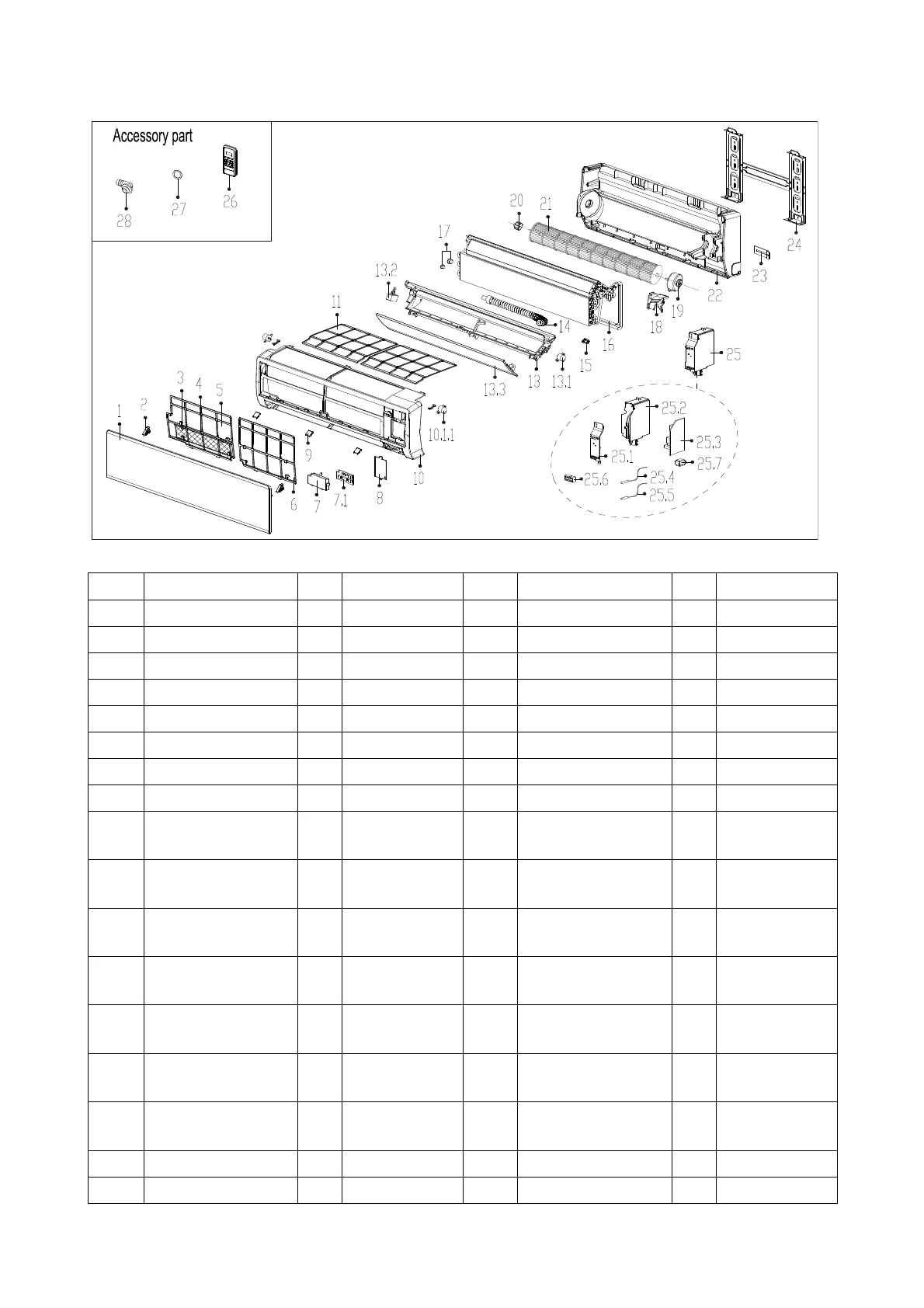

Midea MSV1-09HRFN1-MT0W

77
MSV1-12HRDN1-MQ0W
No.
Part Name
Qty
BOM Code
No.
Part Name
Qty
BOM Code
1
Panel assembly
1
201132590008
17
Pipe nut
1
201600330003
2
Hinge Slide groove
2
201132500010
17
Pipe nut
1
201600330001
3
Air cleaner
1
201131410703
18
Fan motor cover
1
201132500017
4
Bracket of air filter
1
201132200713
19
Asynchronous motor
1
202400300137
5
Air filter(left)
1
201132500013
20
Bearing base
1
202730100201
6
Air filter(right)
1
201132500011
21
Cross flow fan
1
201100200106
7
Display box assembly
1
203332590183
22
Chassis assembly
1
201132500007
7.1
Display board
assembly
1
201332590136
23
Pipe clamp board
1
201232500001
8
Cover of indoor
electronic control box
1
201132500012
24
Installation plate
1
201232590025
9
Screw cap
3
201132500055
25
Electronic control box
assembly
1
203332590441
10
Panel frame
assembly
1
201132501024
25.1
Cover of electronic
control box
1
201132500021
10.1
Panel frame
assembly
1
201132501131
25.2
Electronic control box
1
201132500022
10.1.1
Louver motor
1
202400200105
25.3
Main control board
assembly
1
201332590506
11
Air inlet grille
assembly
1
201132500054
25.4
Ambient temperature
sensor assembly
1
202433190000
13
Air outlet assembly
1
201132590969
25.5
Pipe temperature
sensor assembly
1
202301300080
13.1
Louver motor
1
202400200017
25.6
Wire joint
1
202301450119
13.2
Ionizer generator
1
202403000006
25.7
Transformer
1
202300900097
