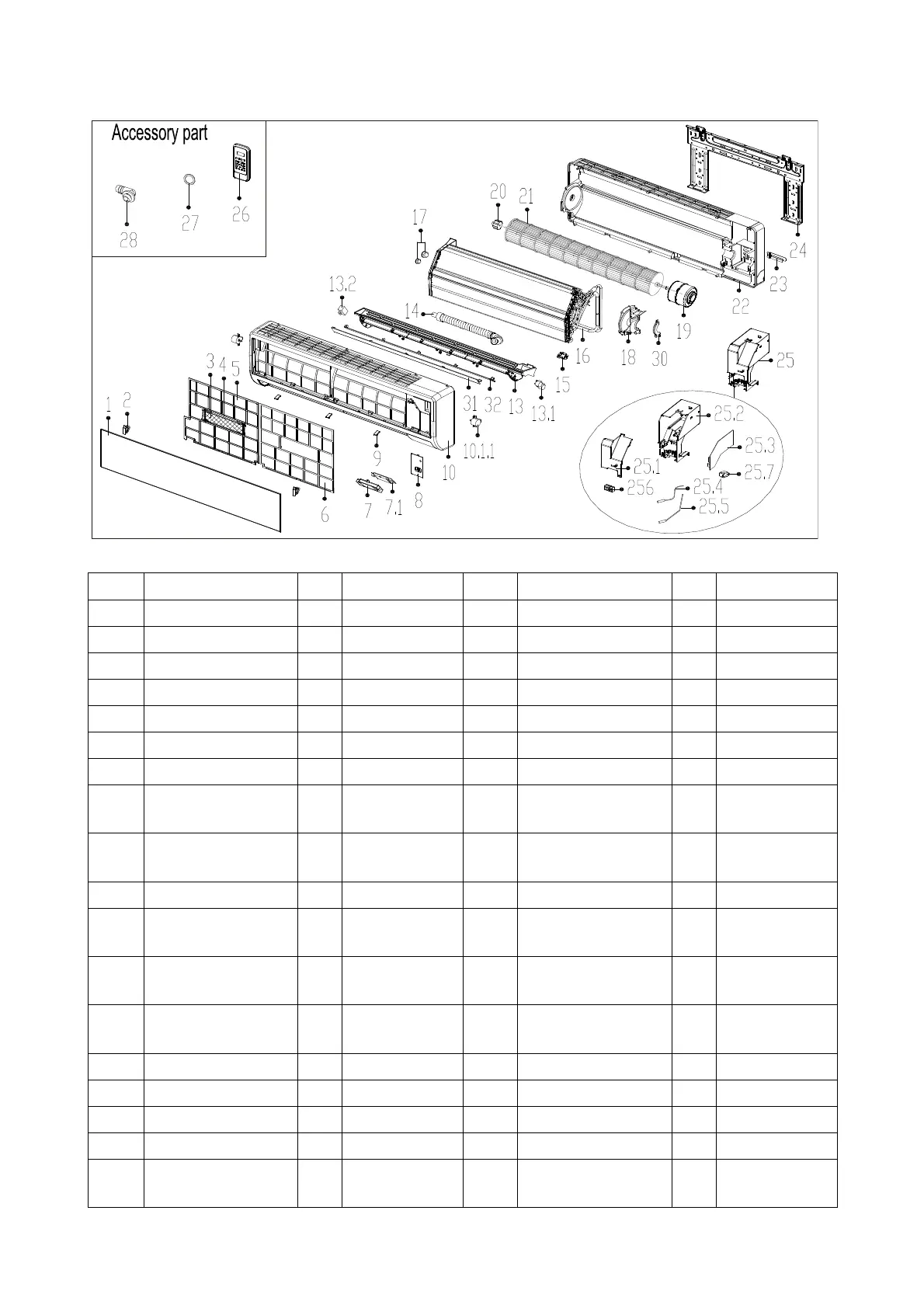

Midea MSV1-09HRFN1-MT0W

81
MSV1-24HRDN1-MQ0W
No.
Part Name
Qty
BOM Code
No.
Part Name
Qty
BOM Code
1
Panel assembly
1
201133090178
18
Fan motor cover
1
201133090176
2
Hinge Slide groove
2
201132890023
19
Asynchronous motor
1
202400400931
3
Air cleaner
1
201131410703
20
Bearing base
1
202730100201
4
Bracket of air filter
1
201132200713
21
Cross flow fan
1
201100200110
5
Air filter(left)
1
201133090174
22
Chassis assembly
1
201133090180
6
Air filter(right)
1
201133090177
23
Pipe clamp board
1
201232800103
7
Display box assembly
1
203332890007
24
Installation plate
1
201232990002
7.1
Display board
assembly
1
201332890026
25
Electronic control box
assembly
1
203333090277
8
Cover of indoor
electronic control box
1
201133090170
25.1
Cover of electronic
control box
1
201133090166
9
Screw cap
3
201133090175
25.2
Electronic control box
1
201133090165
10
Panel frame
assembly
1
201133090914
25.3
Main control board
assembly
1
201333090371
10.1
Panel frame
assembly
1
201133090214
25.4
Ambient temperature
sensor assembly
1
202301300210
10.1.1
Louver motor
1
1
202400200109
25.5
Pipe temperature
sensor assembly
1
202301300077
13
Air outlet assembly
1
201133091001
25.6
Wire joint
1
202301450119
13.1
Louver motor
1
202400200004
25.7
Transformer
1
202300900166
13.2
Ionizer generator
1
202403000003
26
Remote Controller
1
203355091200
14
Drain hose
1
201101020038
27
Seal ring
1
202720090001
15
Fix clamp of
temperature sensor
1
201102000305
28
Drain connecter
1
201101020011
