87

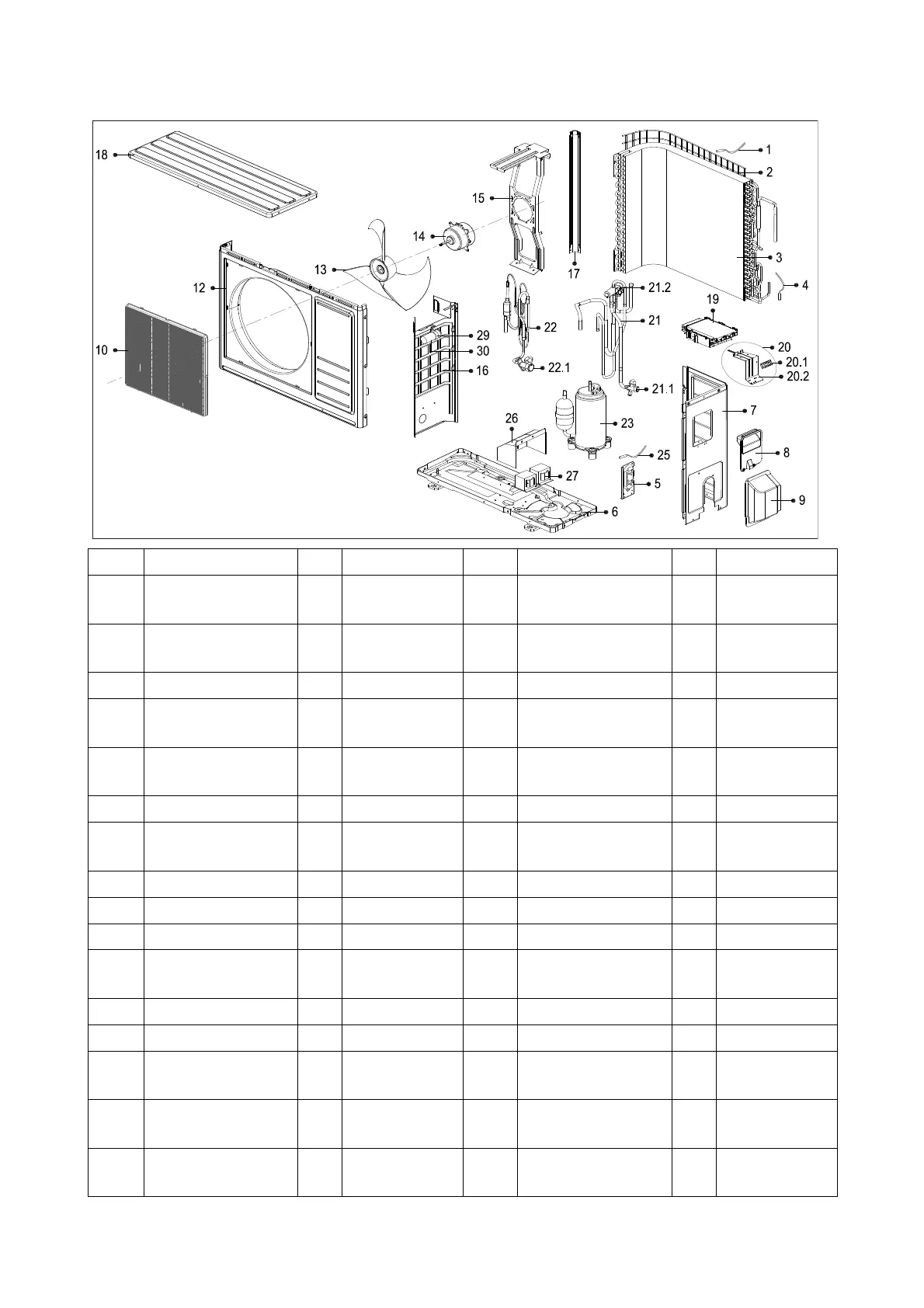

MOC-12HDN1-MQ0W
No.
Part Name
Qty
BOM Code
No.
Part Name
Qty
BOM Code
1
Ambient temperature
sensor assembly
1
202440220061
19
Electronic control box
assembly
1
203337390153
2
Rear net
1
2011374G0003
20
Terminal board
assembly
1
203337590049
3
Condenser assembly
1
201537390033
20.1
Wire joint
1
202301400223
4
Pipe temperature
sensor assembly
1
202440500004
20.2
Terminal board
1
201237590046
5
Valve plate
1
201237200282
21
4-Ways valve
assembly
1
201637591341
6
Chassis assembly
1
201237590094
21.1
Gas valve
1
201600720195
7
Rear right clapboard
assembly
1
201237590080
21.2
4-Ways valve
1
201600690010
8
Big handle
1
201237390104
22
Liquid valve assembly
1
201637590287
9
Water collector
1
201137400000
22.1
Liquid valve
1
201600740523
10
Air outlet grille
1
201137590017
23
Compressor
1
201400620600
12
Front panel
1
201237400392
25
Discharge
temperature sensor
assembly
1
202301310068
13
Axial flow fan
1
201100320625
26
Cover of inductance
1
201235250802
14
Asynchronous motor
1
1
202400401345
27
Reactor
1
202301000819
15
Supporter assembly
of fan motor
1
201237390016
27
Reactor
1
202301000820
16
Partition board
assembly
1
201237590008
29
Capacitor clip
1
201200100005
17
Left supporter
1
201237400400
30
Capacitor of
compressor
1
202401000612
