7.Refrigerating piping system and circulating route of cooling air
7.1 Refrigerating piping system

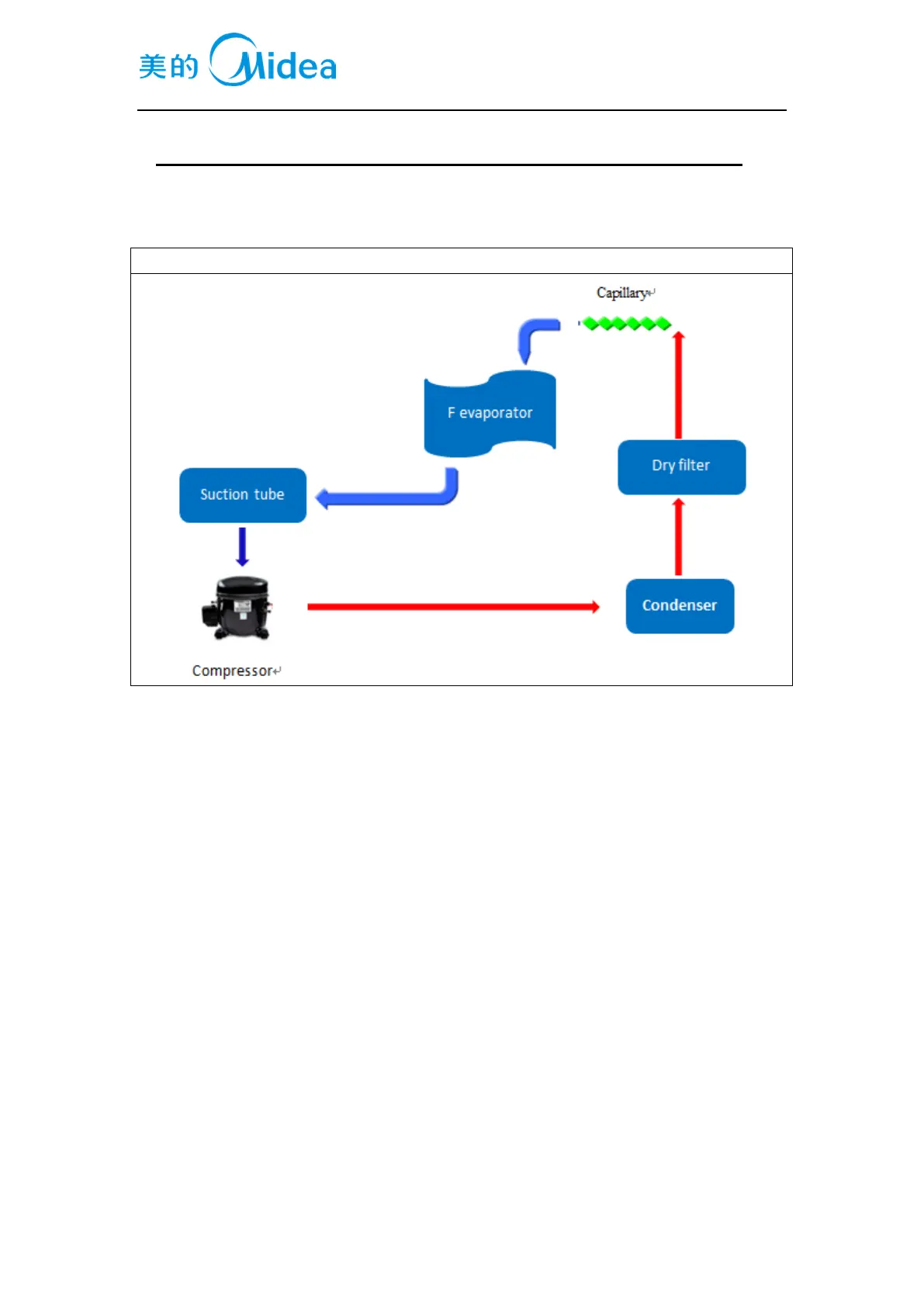

Compressor→condenser→Dry filter→Capillary tube→Evaporator→Return pipe→Compressor
(The picture is only for reference, and specific appearance and configuration are subject to the real
product)
7.2Circulating route of cooling air(None)
