7.Refrigerating piping system and circulating route of cooling air

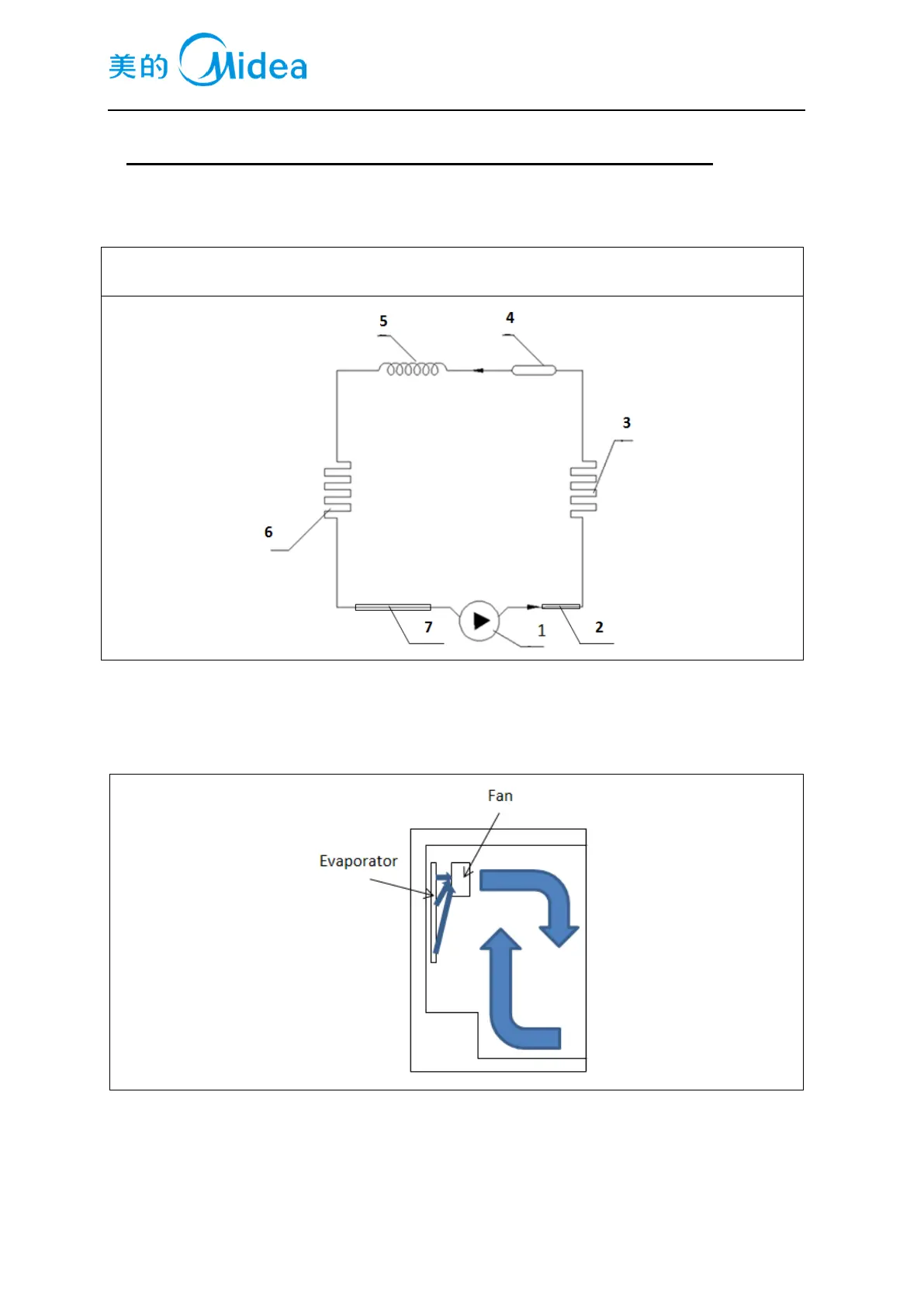

7.1 Refrigerating piping system
1Compressor→2Exhaust transition pipe→3condenser→ 4Dry filter →5Capillary tube→ 6Evaporator→7Return
transition pipe→1Compressor
(The picture is only for reference, and specific appearance and configuration are subject to the real
product)
7.2Circulating route of cooling air
