R410A DC Inverter VRF V4 Plus W Series 50Hz MCAC-VTSM-2016-04
178 Installation
Rated water flow volume(m3/h)
WARNING:
•The water pipes network including water filters and heat exchangers should be periodically cleaned, otherwise, dreg or dirt may
seriously damages the heat exchangers and water pipes.
•The installation persons or the users must ensure the quality of chilled water, and de-icing salt mixtures and air should be
excluded from the water system, since they may oxidize and corrode steel parts inside the heat exchanger.

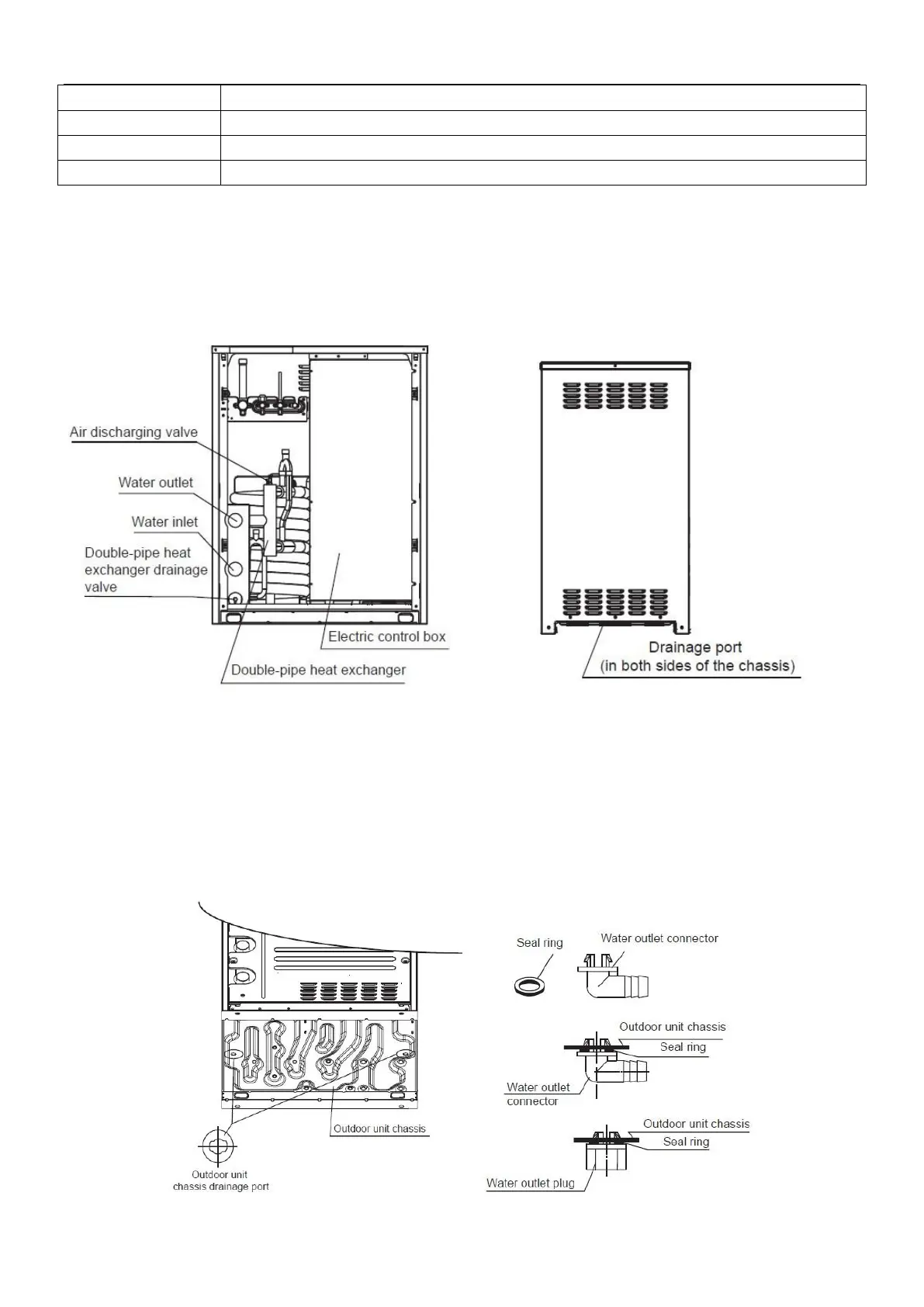

3.2 Positions of water inlet, outlet and drainage port
3.3 Installation of drainage port connecting pipes
According to the field installation condition, it is selected the side which is draining easily for installing the
drainage port connecting pipes. During installation, the seal ring should be put on the water outlet connector,
then install into the drainage hole in the chassis from the bottom of the unit, and then rotate 90°, to make it
firmly assembled. And connect a drainage pipe (commercially available) with the water outlet connector, for
draining the condensed water of the main unit out to the suitable place. Main unit chassis seal ring Water outlet
connector main unit chassis drainage port water outlet connector main unit chassis seal ring water outlet plug
main unit chassis seal.
