V6-i VRF 50/60Hz

103

Part

6 - Diagnosis and Troubleshooting

Step 8: Vacuum drying and refrigerant charging

 Once all the compressors and other components have been fully connected, vacuum dry the system and recharge

refrigerant. Refer to the V6 Engineering Data Book, Part 3.

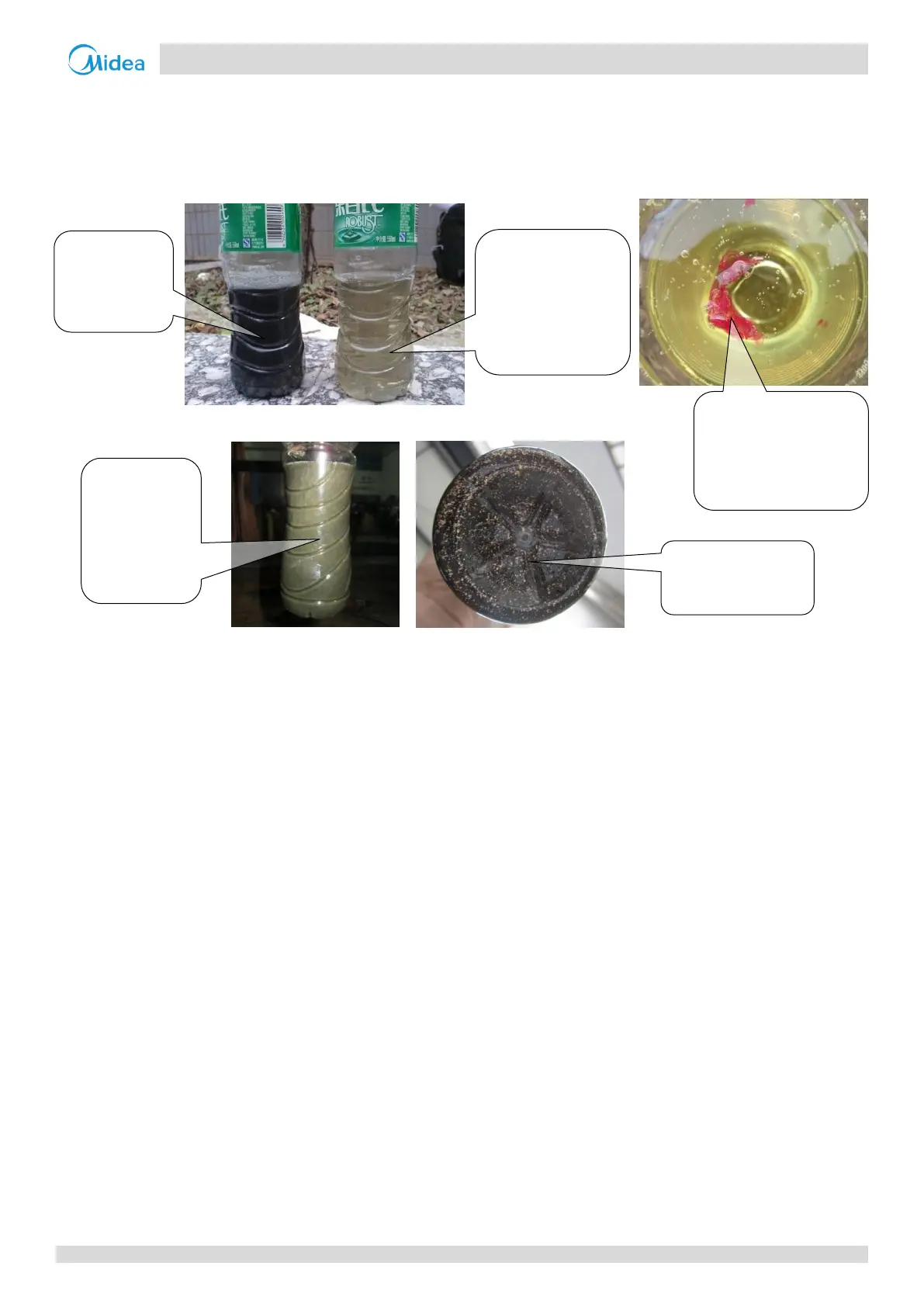

Figure 6-2.10: Inspecting compressor oil

This oil is black

- it has been

carbonized

This oil is a little

yellow, but is clear

and transparent and

the condition is

acceptable

This oil is still

transparent but there

are impurities which

may clog the filter

Cloudy or gray

oil indicates

abnormal

system

operation

This oil contains

particles of copper
