with those on both sides of the transceiver (you can choose the preferred notch in order to best
adjust the angle of the transceiver’s front panel for ease of viewing and use (15
0
of variation for
each notch).
Mount the mounting knobs on the two sides of the bracket to soundly x the transceiver.7.
Keep the transceiver and microphone at a distance of at least 1 meter from all other
magnetic devices (e.g. compass) on your vessel.

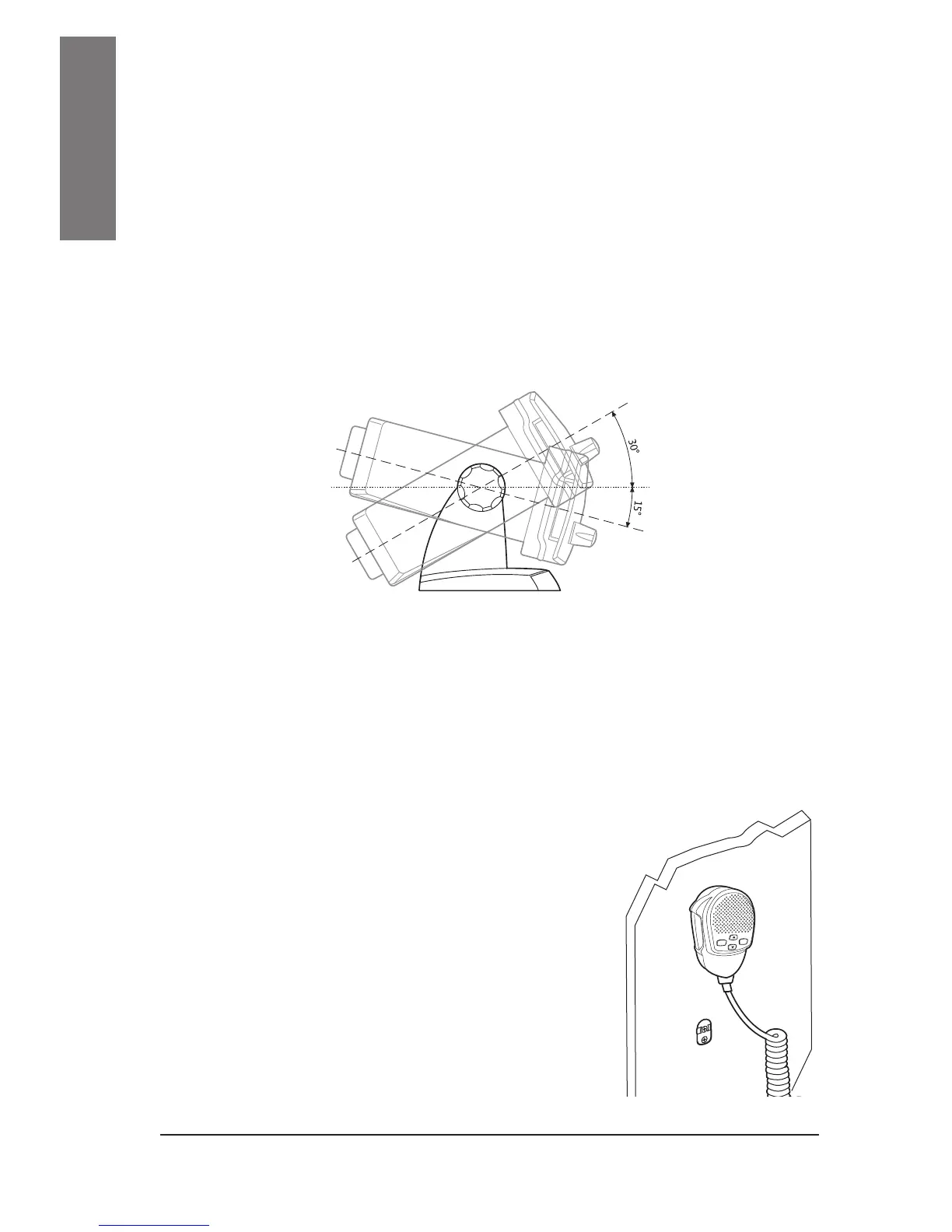

4.4 Adjustment of angle
To change the angle of inclination after installation:
Loosen the mounting knobs on the sides of the bracket.1.
Adjust the transceiver to a better angle, lining up the holes of the internal part of the bracket with2.
those on both sides of the transceiver.
Tighten the knobs to x the transceiver into place.3.
4.5 Installation of the antenna/electromagnetic exposure
For optimal radio settings and minimal user exposure to electromagnetic radiofrequency energy,
ensure that:
The antenna is connected to the transceiver and is properly installed.•
The antenna is situated away from people and is positioned at least one meter from the•
transceiver and microphone.
The connector is a standard PL259 (male UHF).•
4.6 Mounting of Microphone
To mount the microphone mount, look rst for a mounting
point close to the transceiver. The distance between the
transceiver and the wall mount must be less than the length
of the microphone cable.
Do not pull excessively on the microphone cord.
This part is important to the correct function of the
device: over time, pulling may damage the cord and
impede the user from transmitting.
