Chapter 2: Overview

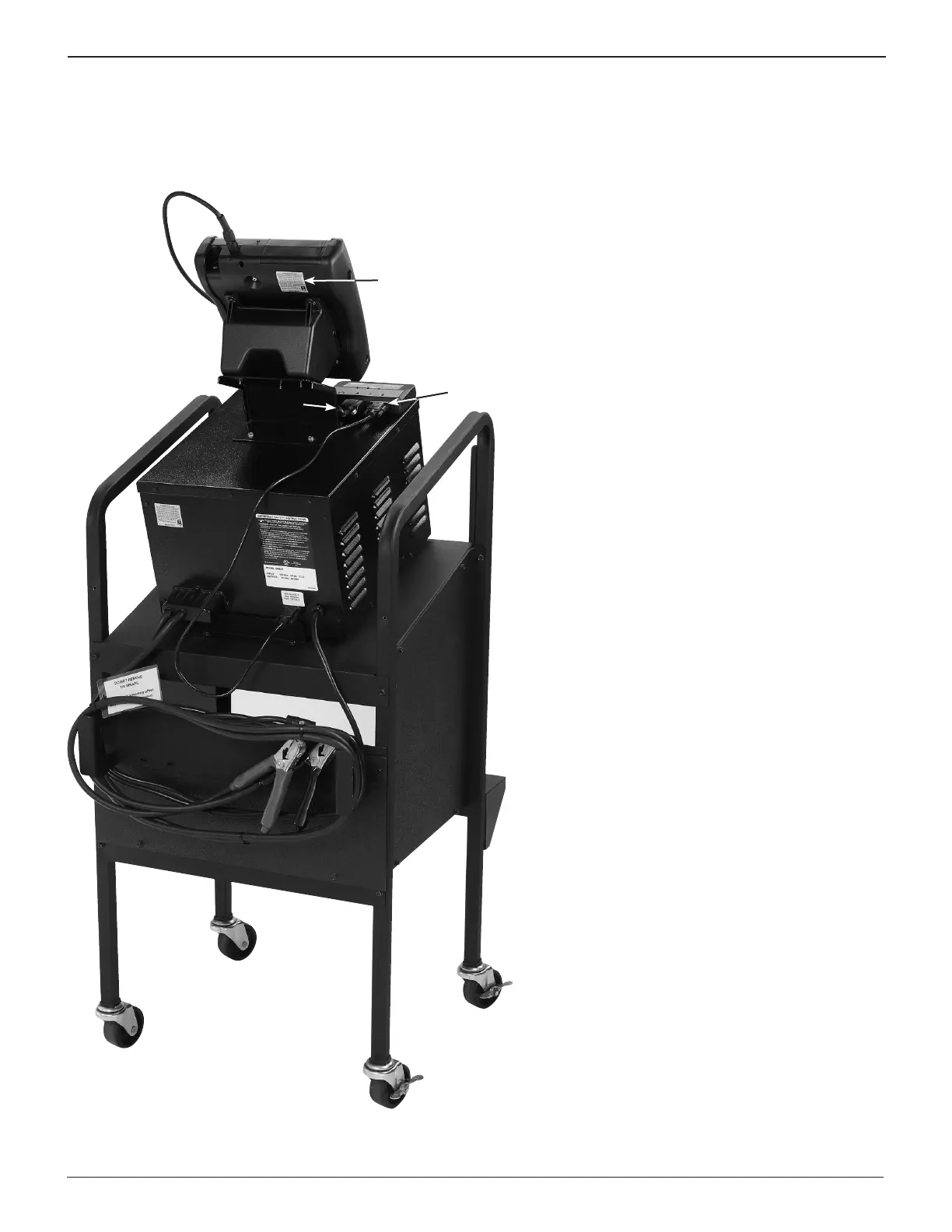

Battery Diagnostic Station: Rear View
Connectors for the charger cables, serial cable, and power cord are on the back of the GR Diagnostic Charge Engine. The serial
number, which you will need in order to register the Battery Diagnostic Station, is on the back of the Control Module.
Serial Number
On bottom of label; required for product registration.
Multitask Bridge
Charger Cable Connectors
Serial Cable Connection: Charge Engine
Serial cable connection from Charge Engine to the
Multitask Bridge.
AC power cord
Connection to grounded nominal 120 V outlet.
Cable wrap
For temporary storage of cables when not in use.
Serial Cable Connection: Port A Multitask Bridge
Connection from Control Module to port A on the
Multitask Bridge
Serial Cable Connection: Port B Multitask Bridge
Connection from port B on the Multitask Bridge to the
Charge Engine.
Charge Engine Cart (Optional)
