1 – Introduction & Overview xMB-9640
Connections

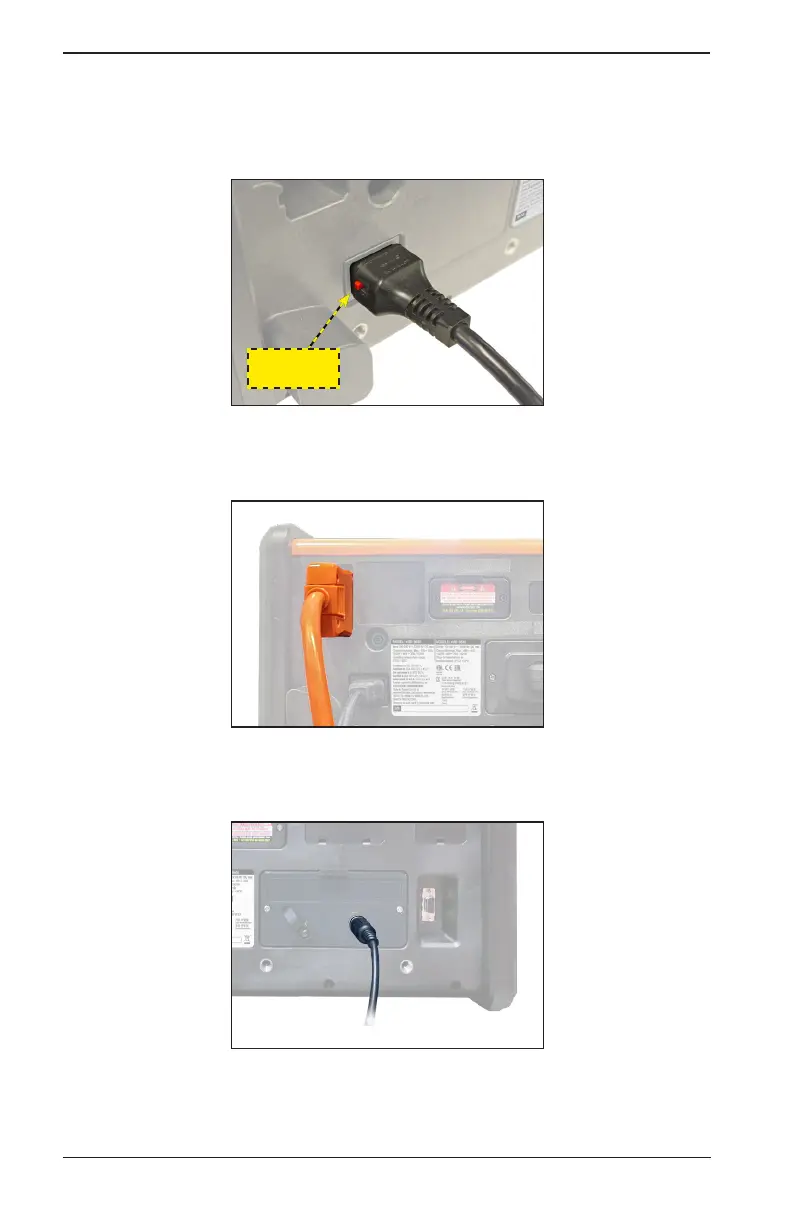

Locking Power Cord
Pull back on the red tab on the side of the connector to release/remove the power cord from the
Balancer power socket.
Pull Back To
Release
Connecting HV Common Cable
Insert HV Common Cable connector into port on the upper-left of the rear panel of the xMB as
denoted in previous section.
Connecting LV Common Cable
Insert LV Common Cable connector into port on the lower-right of the rear panel of the xMB as
denoted in previous section.
