Burner
g Inner burner cap
h Outer burner cap
i Burner ring
j Burner head
k Ignition safety device
l Ignitor
m Burner base

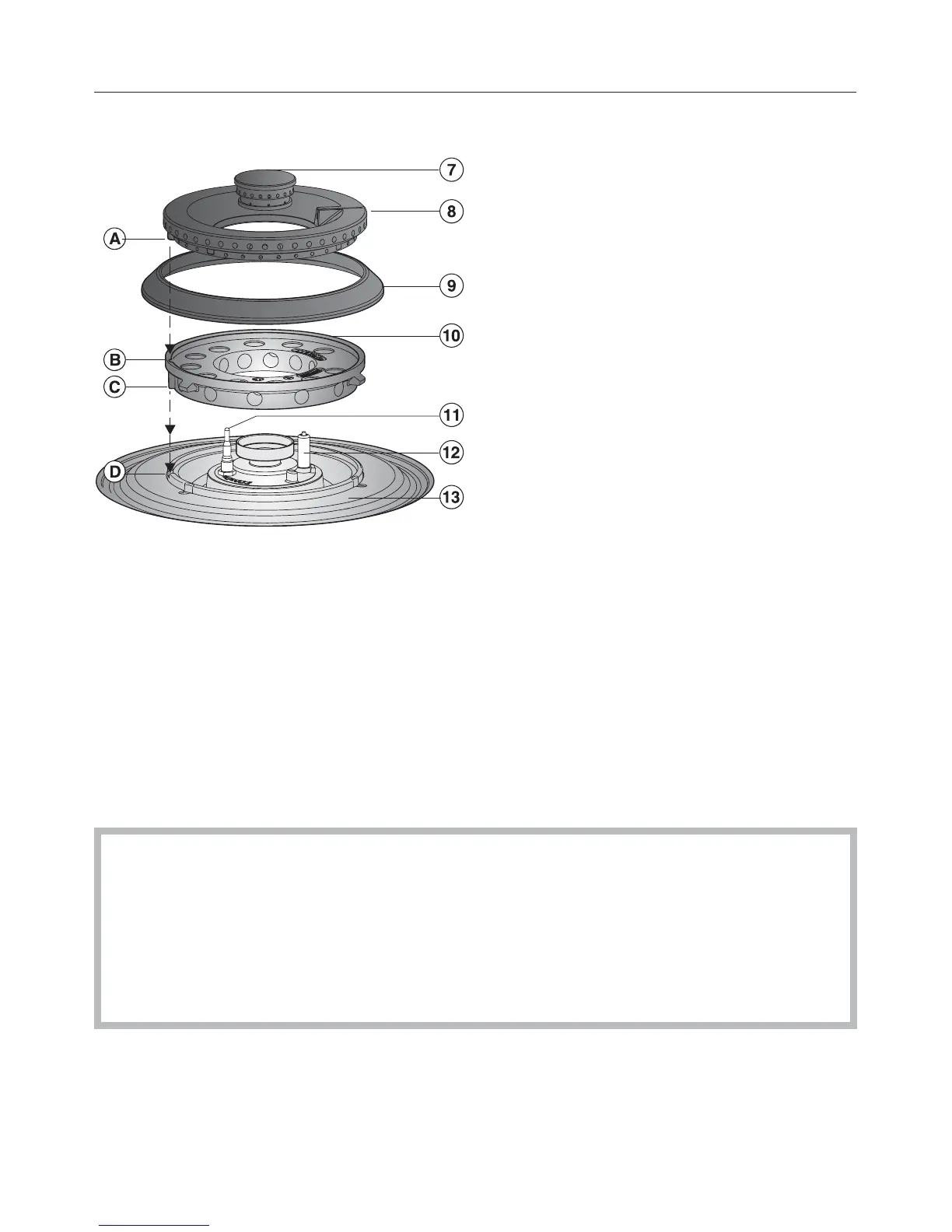

Position of the burner components
The proper functioning of the burner can only be guaranteed if the burner
components are positioned correctly:
The lobe a on the burner cap must fit into the recess b of the burner head.
The pin c on the burner head must fit into the recess d of the burner base.
The burner components cannot be twisted if they are in the correct position.
