Installation
39
a
1 exhaust socket f
or exhaust
ducting 150 mm.
b
1 reducing collar for exhaust
ducting 125 mm. NB: Miele
recommends 150 mm ducting
wherever possible.
c
1 non-return flap for fittin
g into the
exhaust collar on the motor unit (not
needed for recirculation mode).
d
2 covers for the br
ackets.
e
2 brackets t
o support the appliance
in the wall unit.
f
1 cover for the char
coal filter slots.
g
1 spacer strip t
o conceal the gap
between the rear of the appliance
and the wall.
h
Conversion kit for recirculation
mode (the conversion kit is not
supplied, but is available as an
o
ptional accessory - see "Technical
data"). The kit contains an exhaust
grille and flexible aluminium hose
with hose clips.

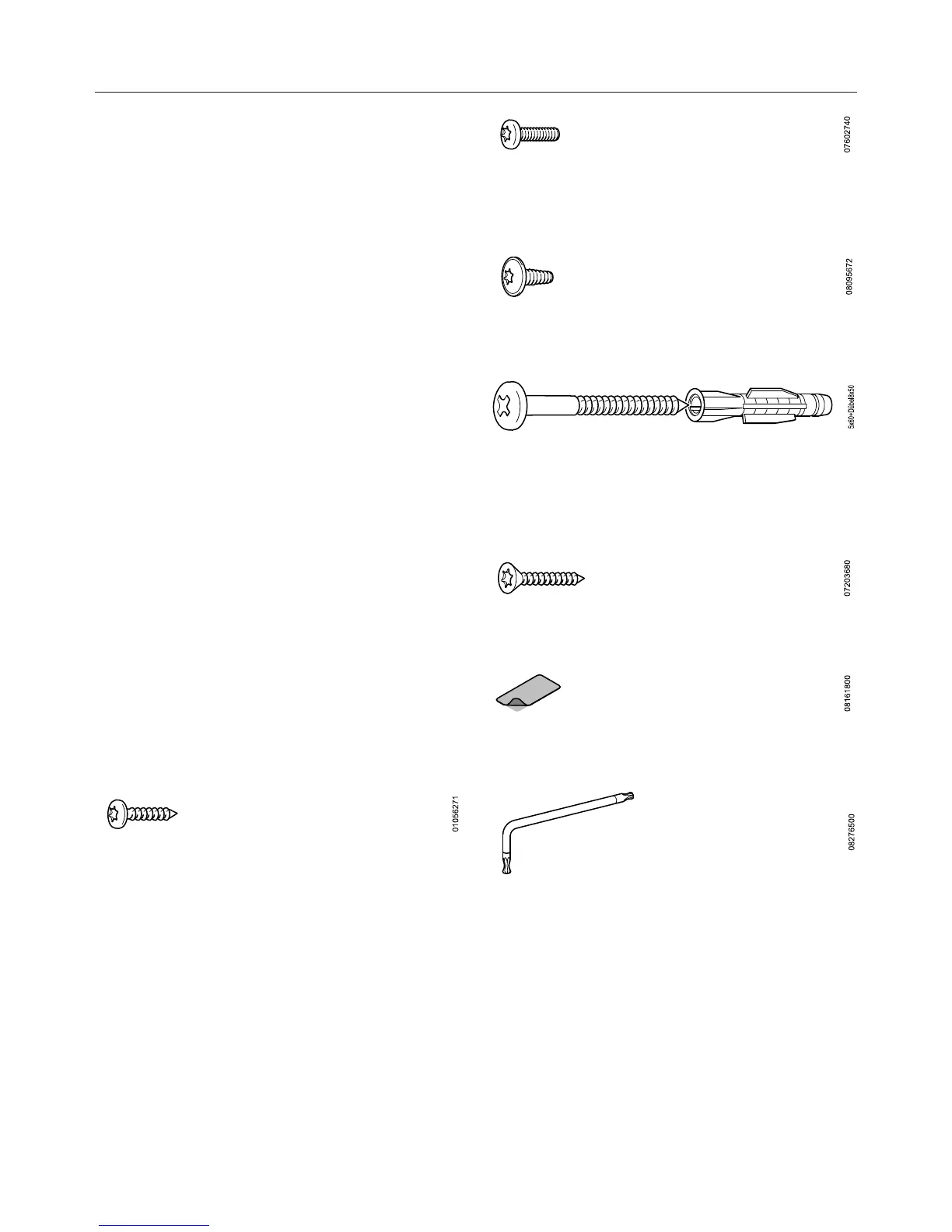

12 screws 4 x 15 mm for securing the
r
angehood to the wall unit.
4 screws M4 x 16 mm for securing the
r
angehood to the brackets and for
securing the spacer strip.
4 screws M4 x 8 mm for securing the
spacer strip.
2 screws 4 x 40 mm,
2 plugs 6 x 36 mm for securing the
r
angehood to the wall (only when
installing in a 900 mm wide wall unit).
4 screws 4 x 25 mm for securing a
900 mm wide r
angehood.
4 adhesive covers t
o conceal the
fixing holes which are not required.
1 x T 20 angled key
