Installation
51
a
1 collar for exhaust ducting
150mm.
b
1 reducing collar for exhaust
ducting 125mm.
c
1 non-return flap for fitting into the
exhaust socket on the motor unit
(not needed for recirculation mode)
d
2 covers for the brackets.
e
2 brackets to support the appliance
in the wall unit.
f
1 cover for the charcoal filter slots.
g
1 spacer strip to conceal the gap
between the rear of the appliance
and the wall.
h
Conversion kit for recirculation
mode (the conversion kit is not
supplied and must be ordered
separately; see “Technical data”).
The kit contains an exhaust grille
and aluminium hose with hose clips.

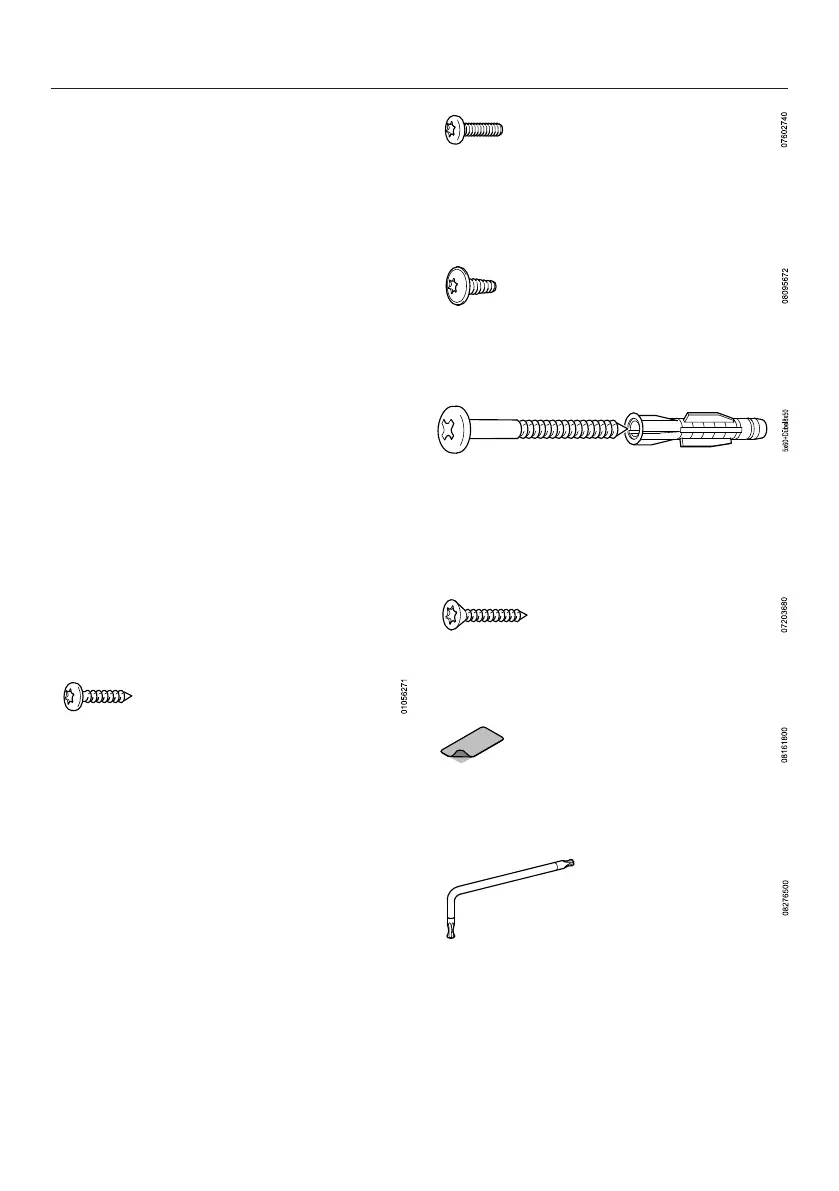

12 screws 4 x 15mm for securing the
cooker hood into the wall unit.
4 screws M4 x 16mm for securing the
cooker hood to the brackets and for
securing the spacer strip.
4 screws M4 x 8mm for securing the
spacer strip.
2 screws 4 x 40mm,
2 plugs 6 x 36mm for securing the
cooker hood to the wall (only when
fitting into a 900mm wide wall unit).
4 screws 4 x 25mm for securing a
900mm wide cooker hood.
4 adhesive covers to conceal the
fixing holes which are not required.
1 x T 20 angled key
