Installation
57
When fitting a 900mm wide cooker
hood into a 900mm wide housing unit
without side base supports, additional
alignment and securing of the cooker
hood is required. This is done using the
two brackets on the back wall of the
unit.
If the wall unit does not have a solid
back panel, the cooker hood can be
secured directly to the wall using the
screws and plugs supplied.
An angled key is supplied in case the
screws are difficult to access.

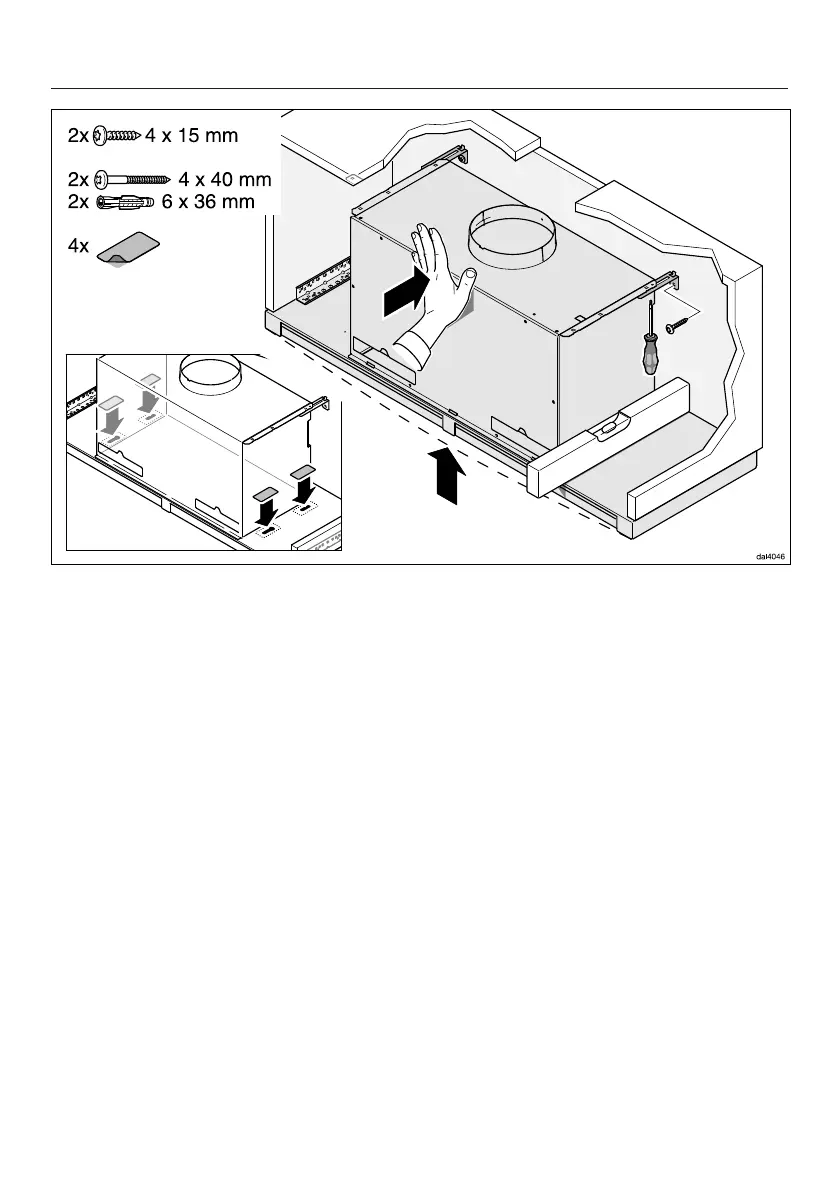

Loosen the retaining bracket screws
and push the brackets back against
the rear wall.
Align the cooker hood and mark the
position of the fixing holes in the wall
unit.
Now secure the brackets to the wall
unit.
Realign the cooker hood and tighten
up the screws on the casing.
Conceal the fixing holes on the
deflector plate which are not used.
Suitable adhesive covers are
supplied.
