Installation
58

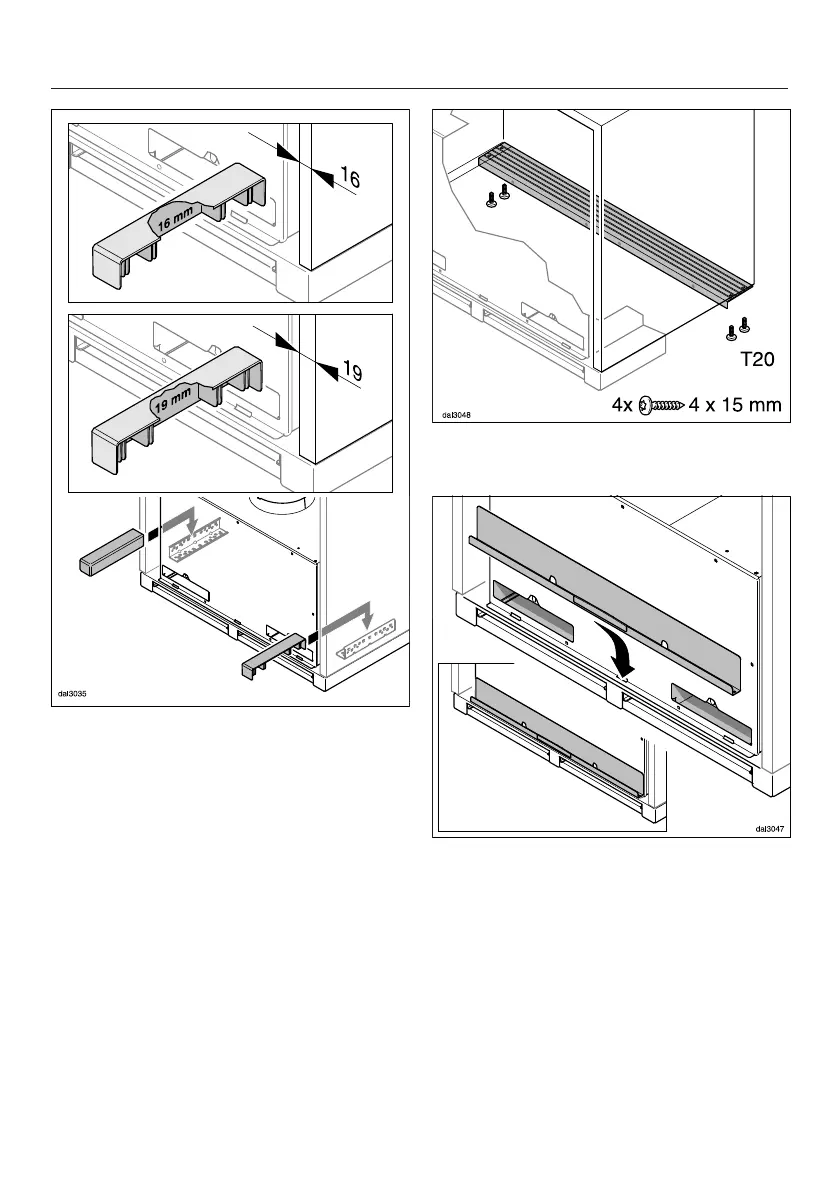

The covers for the brackets are
designed for 16mm and 19mm thick
unit sides. Turn the covers so that
they are in the appropriate position
and fit them onto the brackets.
Secure the spacer strip to the bottom
of the wall unit as well.
Insert the cover for the charcoal filter
slots as shown and close it. It is held
in place by magnets.
