the appliance. See Figure 030-5, Item 1.
8. Remove the two 7mm nuts securing the top heat/broil element to the rear
of the appliance, and take off the ground wire. See Figure 030-5, Item 2.

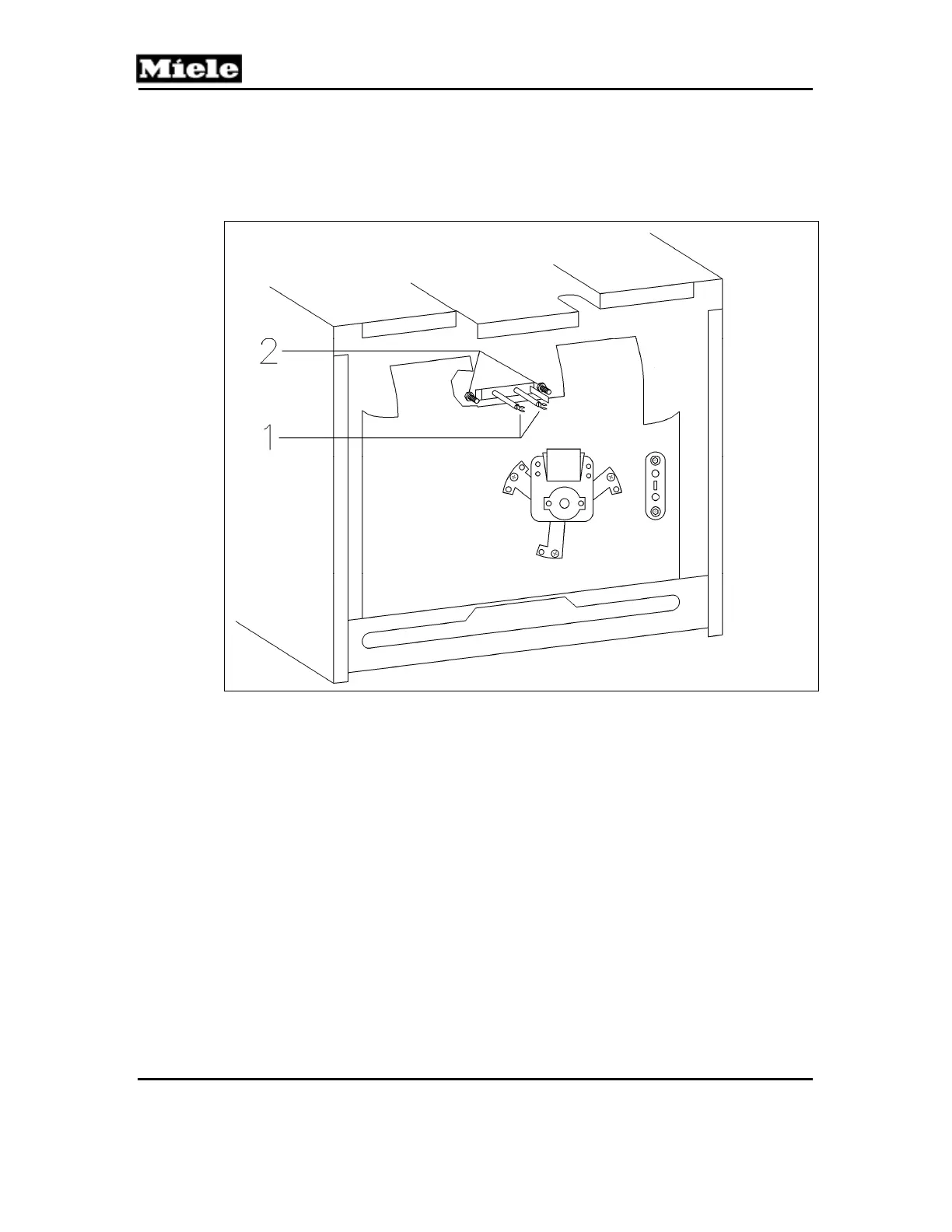

Figure 030-5: Top Heat/Broil Element
9. Remove the top heat/broil element from the oven cavity.
4.3 Bottom Heater Element (R12) Removal
1. Remove the door; see Section 020-4.1.
2. Remove the appliance from its housing unit; see Section 010-4.1.
3. Disconnect the appliance from the power supply.
4. Remove the lid; see Section 010-4.2.
5. Remove the side panels; see Sections 010-4.3 and 010-4.4.
6. Remove the cable duct; see Section 010-4.6.
7. Remove both hinges; see Section 010-4.7.
8. Unclip the door contact switch from the base plate.
9. Remove residual water from the drain in the cavity using a syringe.
10. Lay the appliance on its right side.
11. Remove the four T20 screws securing the base plate (see arrows, Figure
030-6) and remove the base plate.
