Plinth height B depends on the building
under height:
With a niche height of 820 mm the
plinth height is 100 - 170 mm.
The plinth height will be dictated by the
height of the furniture front.
With a building under height of
870 mm the plinth height is
150 - 220 mm. In this case, the plinth
height may be dictated by the
adjustable feet under the appliance as
well as the height of the furniture front.

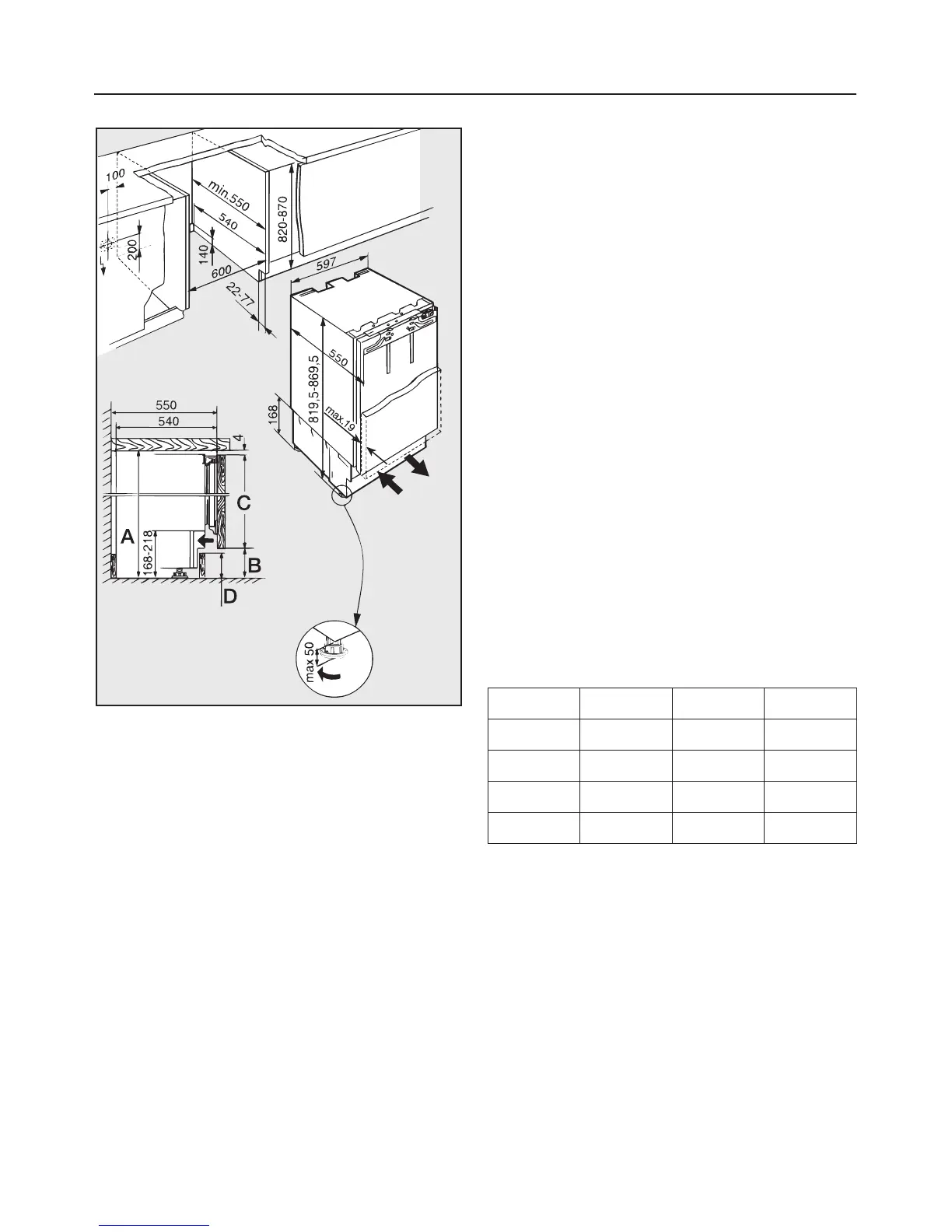

A = Niche height
B = Height of furniture plinth facing
C = Furniture front height
D = Height of furniture plinth facing
trimmed to size around the
appliance
ABCD
820 mm 100 mm 716 mm 100 mm
820 mm 170 mm 646 mm 100 mm
870 mm 150 mm 716 mm 150 mm
870 mm 220 mm 646 mm 150 mm
Building-in dimensions
