Technical Information
101
G 1xxx/G 2xxx

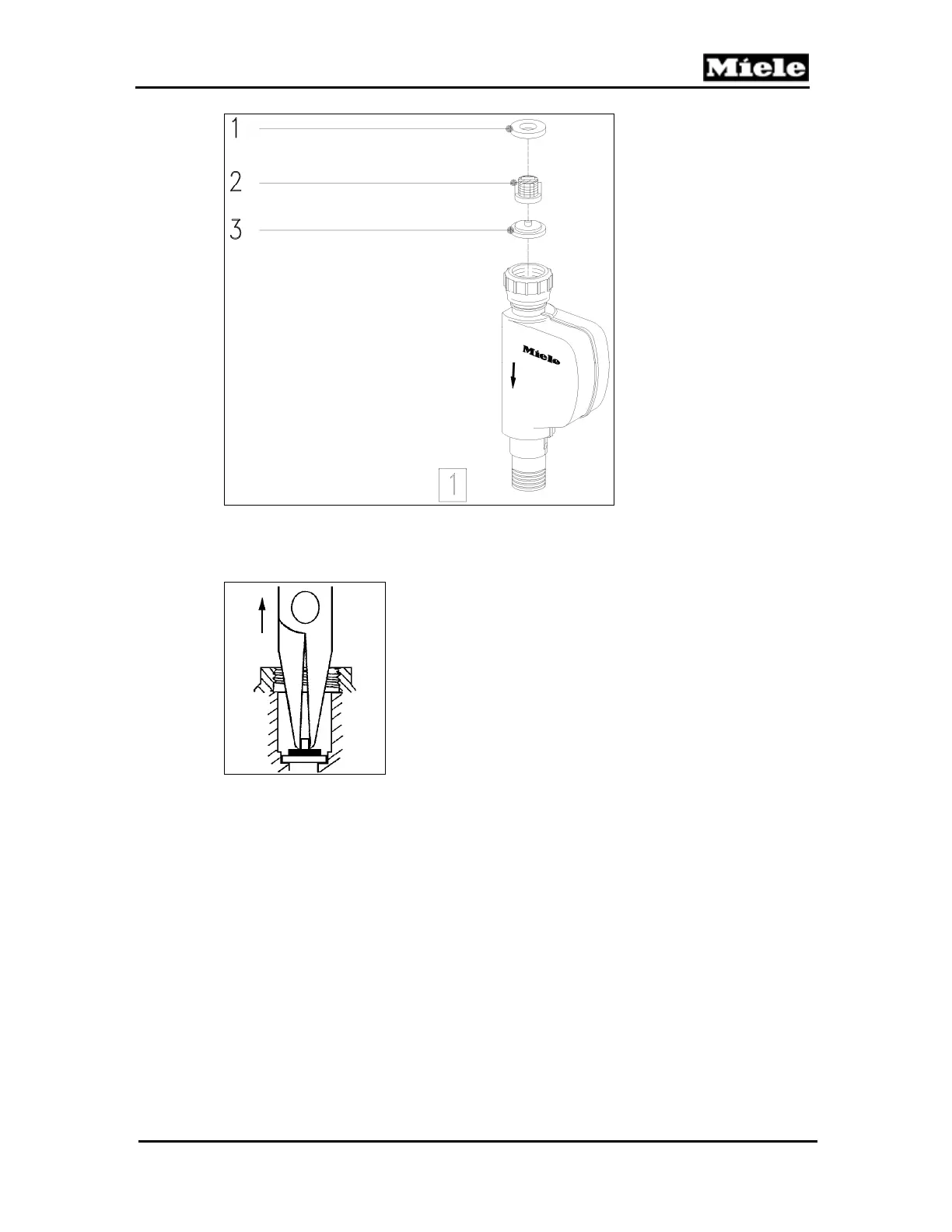

Figure 050-17:
WaterProof System
2.
Remove the restrictor (Figure 050-17, Item 3) with needlenose pliers
(Figure 050-18).
Figure 050-18:
Removing the WaterProof
System Restri
ctor
3.
Install the new (green) restrictor using a suitable metric 5-millimeter
socket wrench to press it firmly into place (Figure 050-19).
