Technical Information

104

G 1xxx/G 2xxx

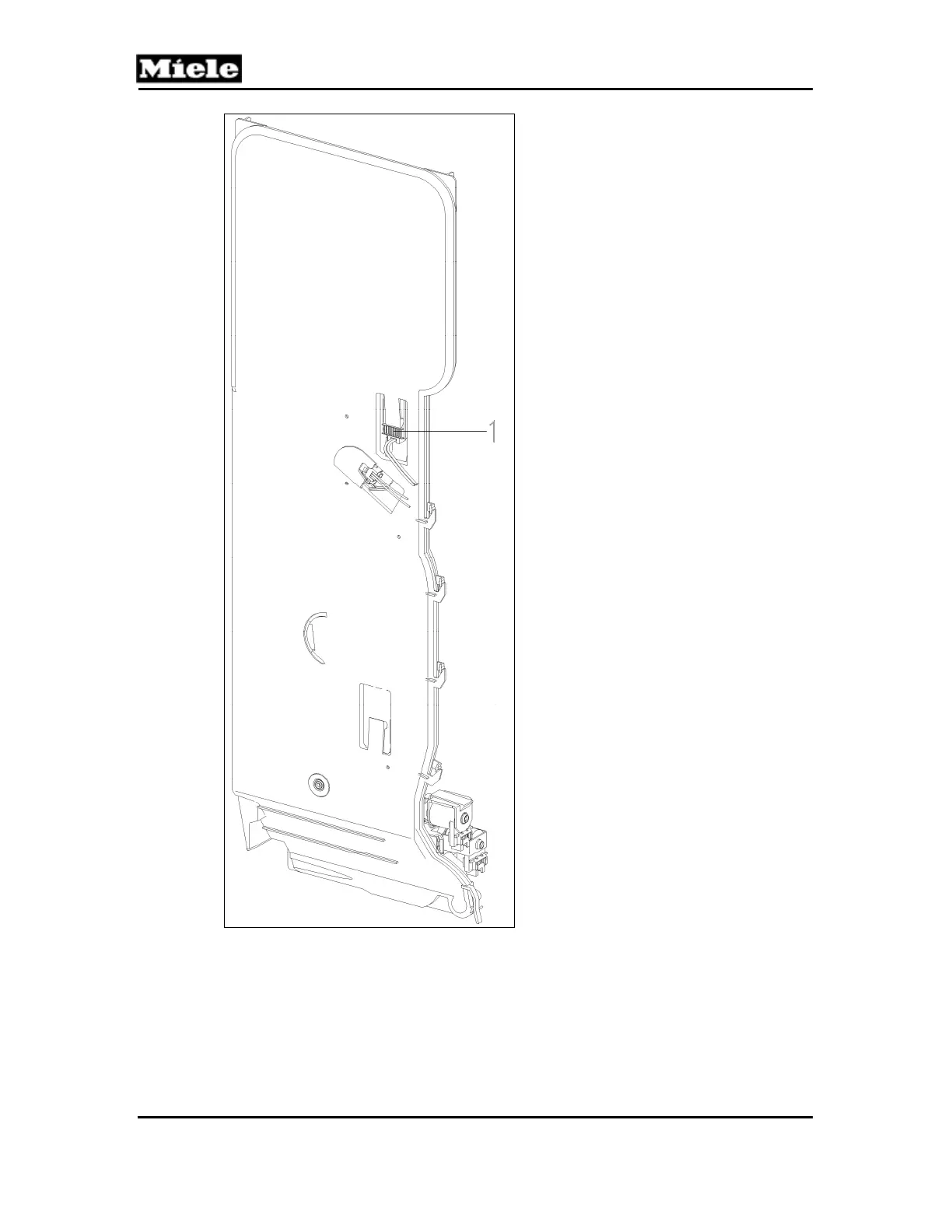

Figure 050-20: Spray Arm Sensor

4.10 Removing the Water Diverter with Resin Chamber

1. Unscrew the water diverter vent connection inside the cabinet.

2. Unscrew the salt container cap.
