Technical Information
84
G 1xxx/G 2xxx
2.4.3 Reactivation

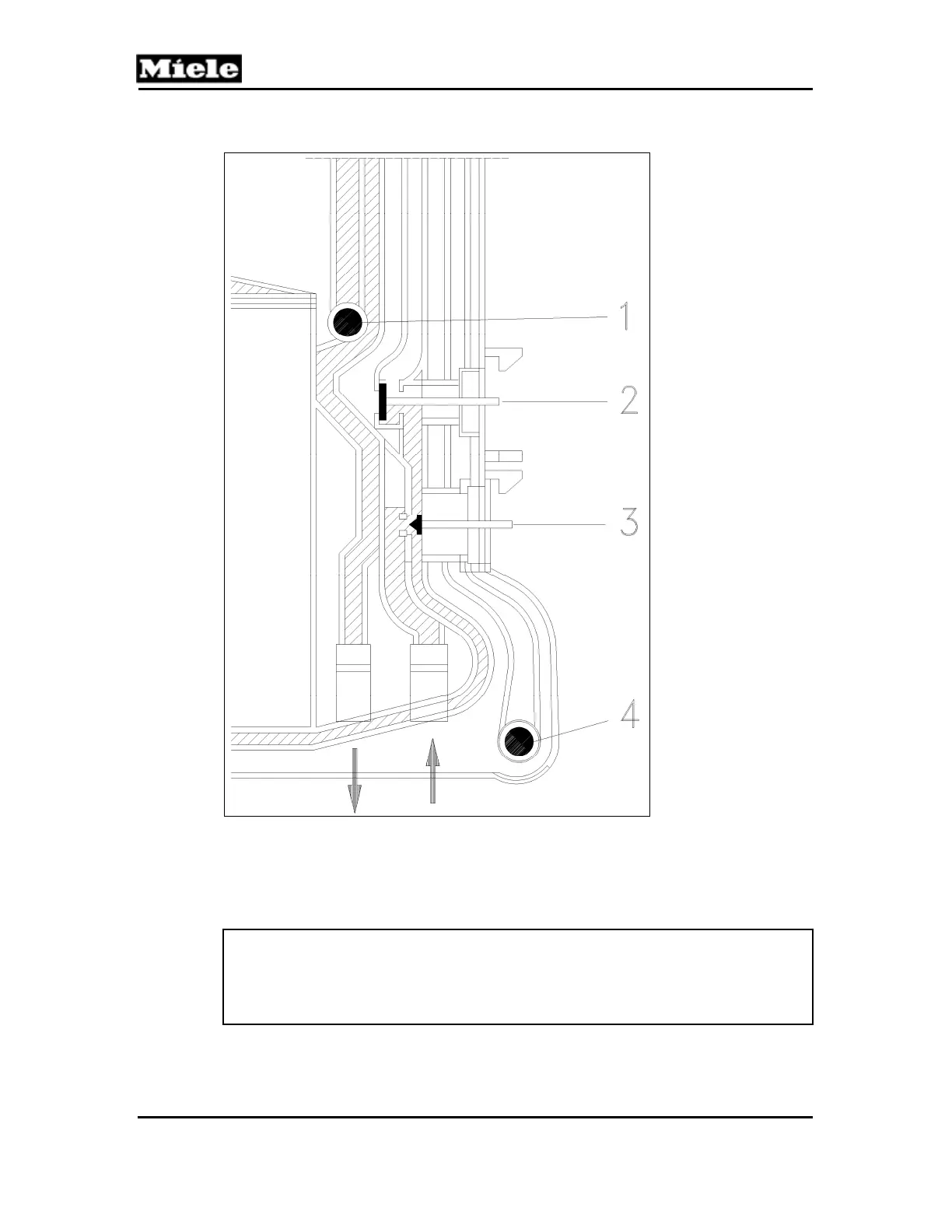

Figure 050-6:
Reactivation
1
Water outlet to sump
2
EGS valve
3
Reactivation valve open
4
Connection to
inlet valve
Note:
Since machine no. 79575776 (6/5/07), the two connections between the
water diverter and the salt container have each been fitted with 2 seals (O-
rings); see Figure 050-3, items 8 and 9.
83
85
