Technical Information

83

G 1xxx/G 2xxx

2.4.2 Water Diverter with EGS

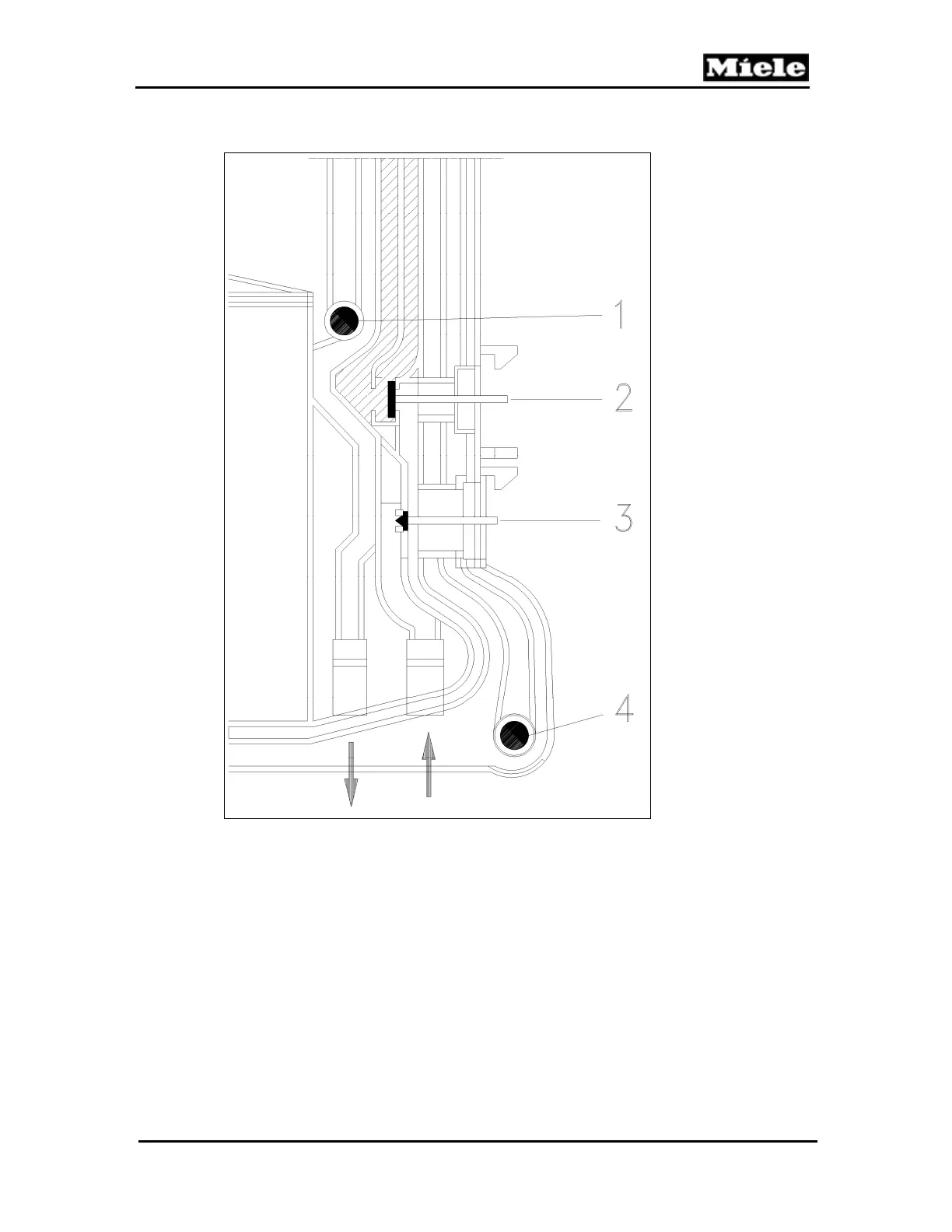

Figure 050-5: Water Diverter with EGS

1

Water outlet to sump

2

EGS valve activated

3

Reactivation valve

4

Connection to inlet valve
