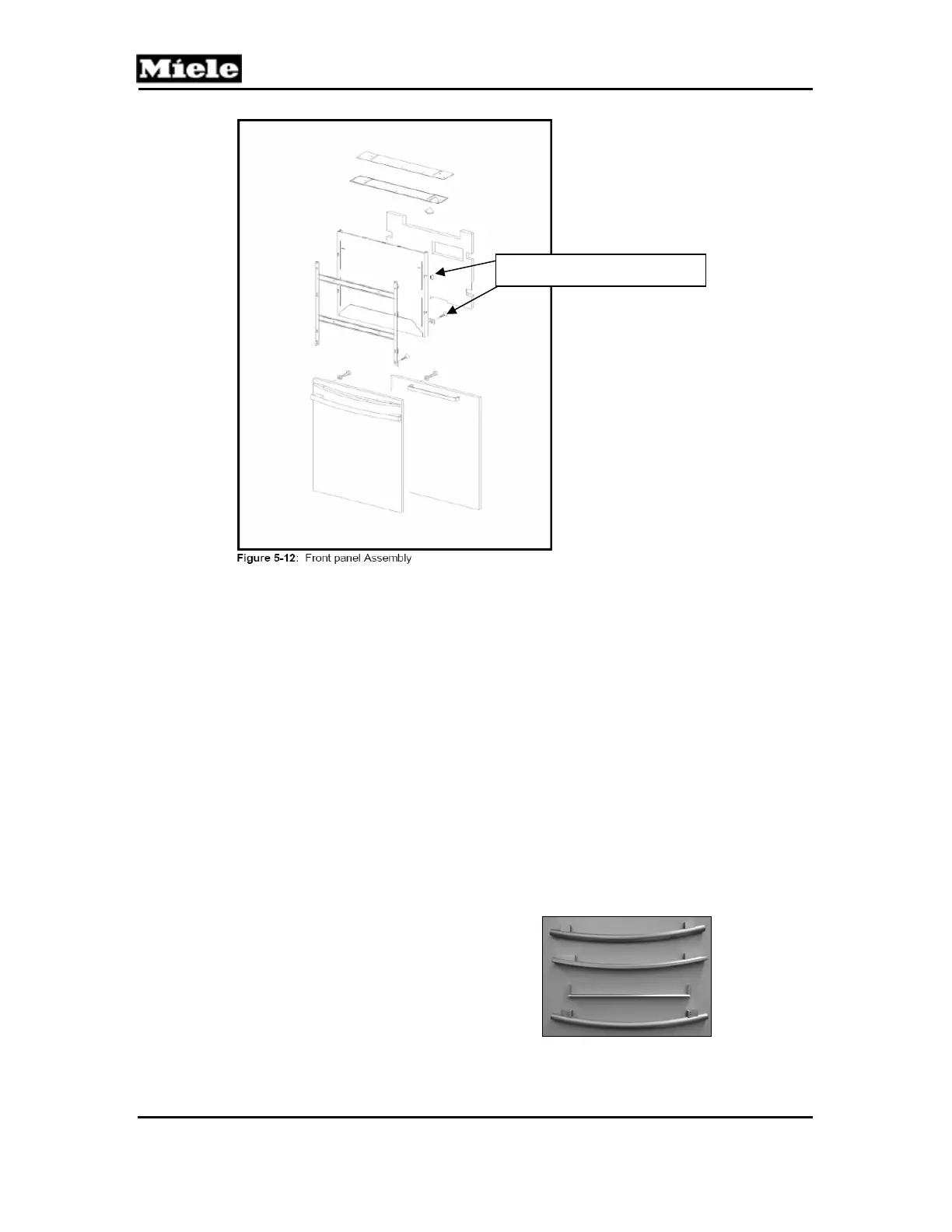

Remove the existing handle.
Lay the panel face down on a soft surface and remove the two hex nuts with
a 10mm nut driver. The existing handle will come off with the mounting studs
attached.
Install the new handle.
Replacement handles come complete with mounting screws and installation
instructions. Use the supplied screws to attach the new handle.
Re-install the door panel.
Replace the door panel, making sure the mounting tabs are fully seated in the
mounting slots. Tighten the mounting clamps with your T-20 driver. Be careful
not to overtighten the clamps. Be sure to save all of the hardware for the
original SF handle; if the customer wants to revert to that handle, the
mounting hardware is not interchangeable.
Stainless-steel handle styles available:
Name Item Part Number
Note: The SF
and Profi
handles are the
same style, but
the mounting
design is
different.
Profi DS4030 22996138USA
Classic DS4031 22996139USA
Square DS4032 06654270
SF (Supplied) N/A N/A
Panel Mounting Screws
To Next Page
