Technical Information
53
G 600/G 800
hose.
7. Check for proper operation.

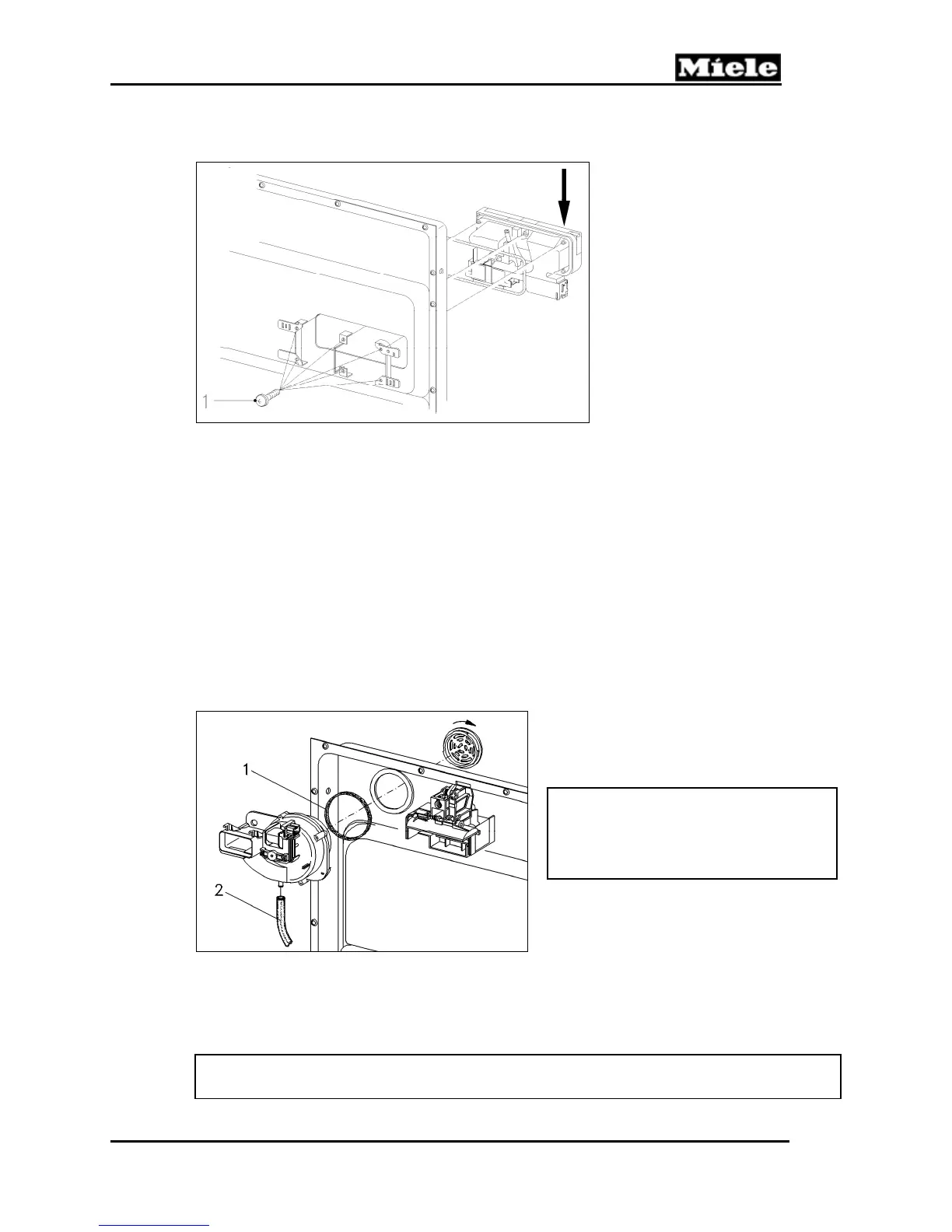

Figure 5-11: Combination Dispenser Removal
5.9 Turbothermic Fan Removal
1. Remove the outer door panel. Refer to Section 5.10.
2. Remove the control panel. Refer to Section 5.47.
3. Remove the mounting bracket. Refer to Section 5.48. Components (e.g.,
electronic, handle) can remain on the mounting bracket.
4. Disconnect the connection plugs and the hose connection to the combination
dispenser (Figure 5-12, Item 2).
5. Open the door.
6. Using needlenose pliers, turn the fan cover (filter) on the door inner panel in the
direction of the arrow to release it from the bayonet fitting.
7. Remove the fan and seal.
Figure 5-12: Turbothermic Fan Removal
5.10 Door Panel (Outer and Inner) Removal
Note:
This procedure does NOT apply to pre-finished models.
Note:
When re-installing, insert the two
lugs on the fan in the holes
rovided.
