G 600/G 800

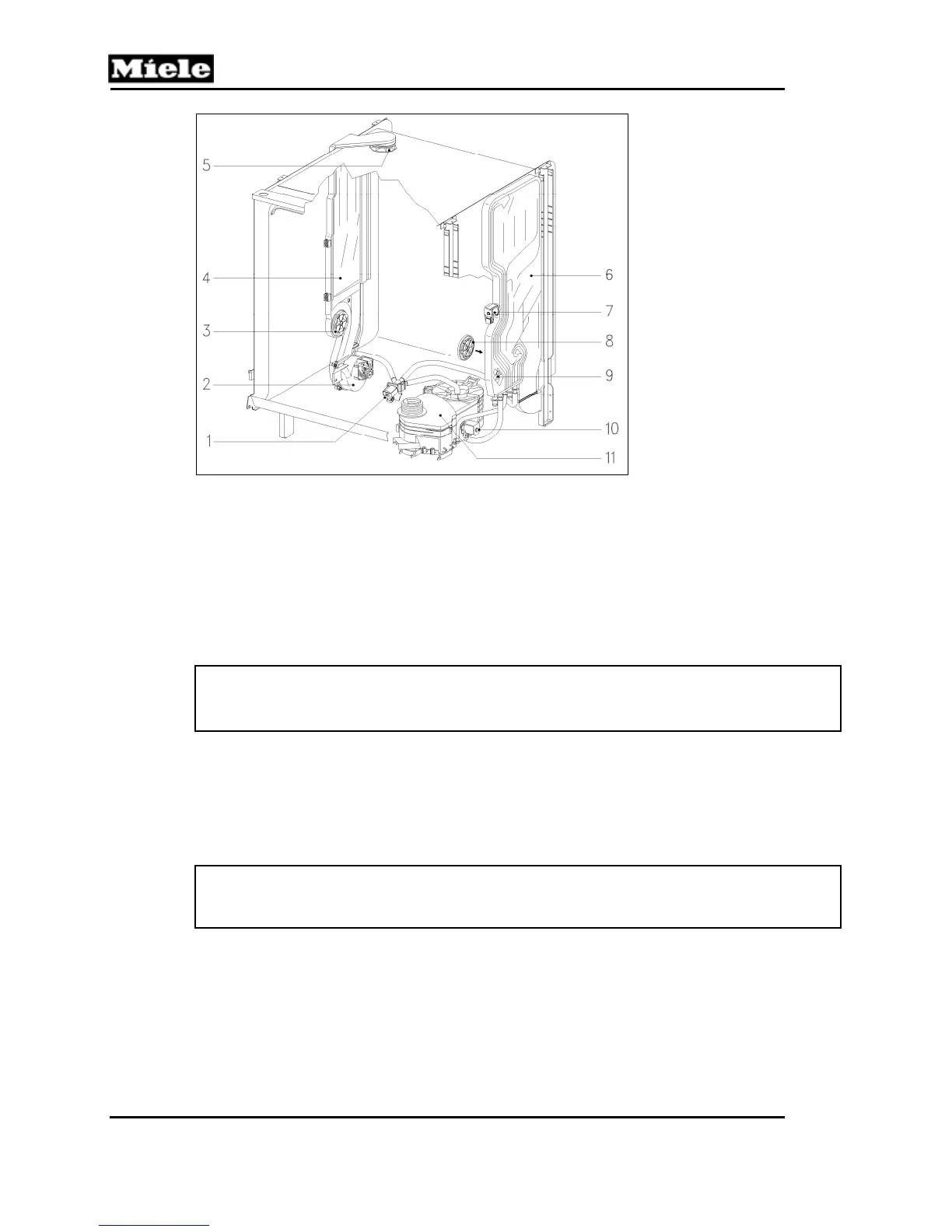

Figure 5-26: Steam Condenser Components
5.33 Control Valve (Y6) Removal
1. Lay the dishwasher on its back.
2. Remove the drip pan. See Section 5.29.
3. Disconnect the electrical connection to the valve.
4. Note positions of all hoses. Disconnect the hose connections.
5. Remove the control valve.
Warning!
To prevent the possibility of a flooding condition, ensure that all control valve
hoses are connected correctly and are not crushed, kinked, or stretched.
5.34 Temperature Sensor (NTC) Removal
1. Remove as much water as possible from the sump.
2. Disconnect the temperature sensor electrical connection.
3. Pull the sensor outward and remove it from the sump.
Note:
During re-installation, the NTC seal should be positioned in the sump assembly
before installing the temperature sensor.
5.35 Circulation Pump (M6) Removal
1. Remove all water from the sump.
2. Remove the retaining bolt (Figure 5-27, Item 5) from the casing rear panel
(Figure 5-27, Item 4).
3. Lay the dishwasher on its back.
4. Remove the drip pan. See Section 5.30.
1 Water control valve Y6 (for steam condenser
)
2 Fan M2
3 Vent/water port from condenser
4 Steam condenser assembly
5 Air duct (condenser intake)
6 Water inlet assembly
7 Solenoid valve Y5 (water hardness)
8 Cabinet vent/water port (un-softened)
9 Flow meter B3/4
10 Reactivation valve Y38
11 Water softener assembly
