G 600/G 800

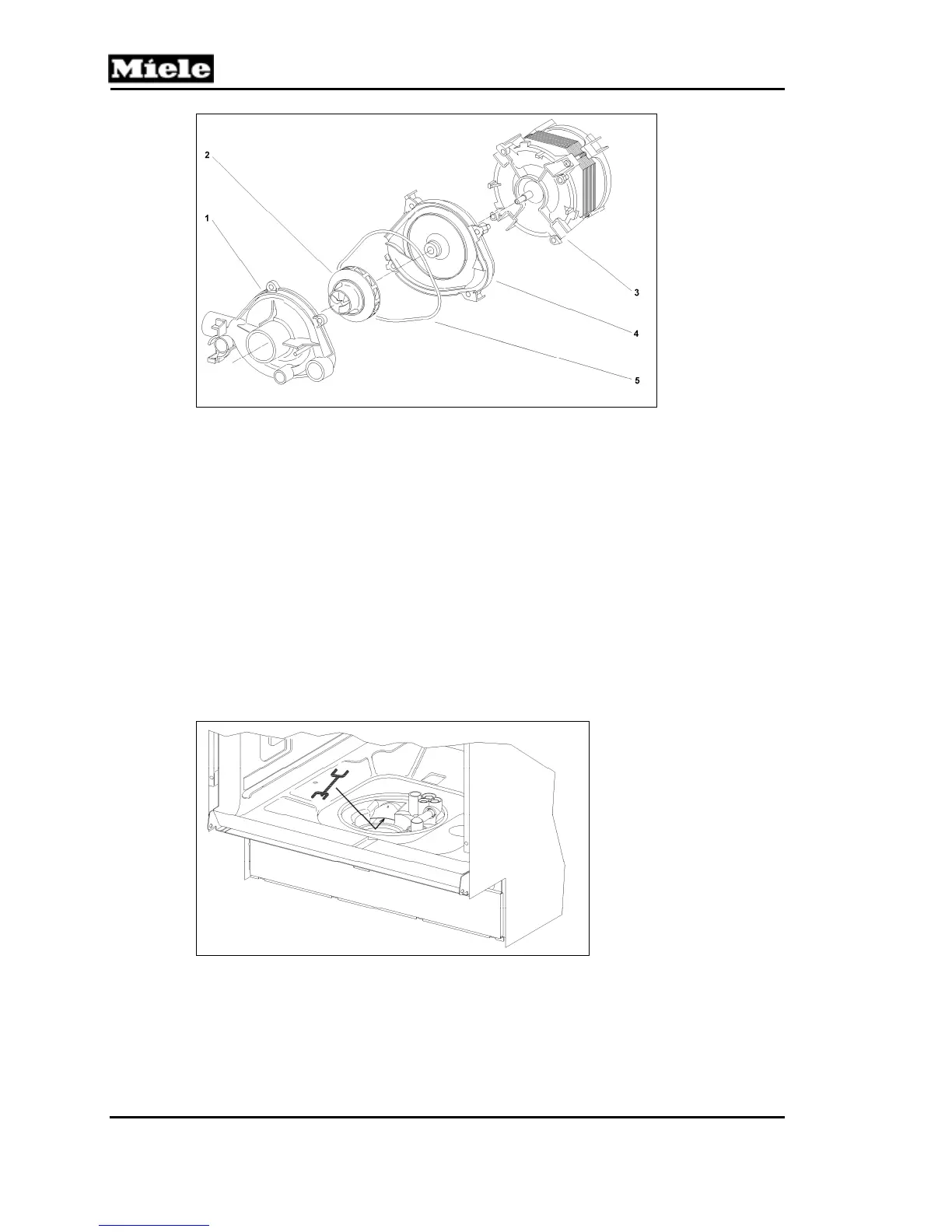

Figure 5-28: Circulation Pump Components
5.37 Circulation Pump Housing Replacement
1. Remove the circulation pump. See Section 5.36.
2. Remove the four (4) screws from the pump housing (Figure 5-28, Item 1).
3. Install the new pump housing and unpressed ring.
5.38 Circulation Pump Release with Tool
1. Open the door.
2. Remove the bottom spray arm and the filter assembly. See Sections 5.17 and
5.23.
3. Slide the releasing tool’s prongs horizontally into the circulation pump intake
opening as far as possible. See Figure 5-29.
Figure 5-29: Sliding the Circulation Pump Tool into the Circulation Pump Intake Opening
4. Ensure that the prongs engage in the circulation pump impeller. See Figure 5-30.
