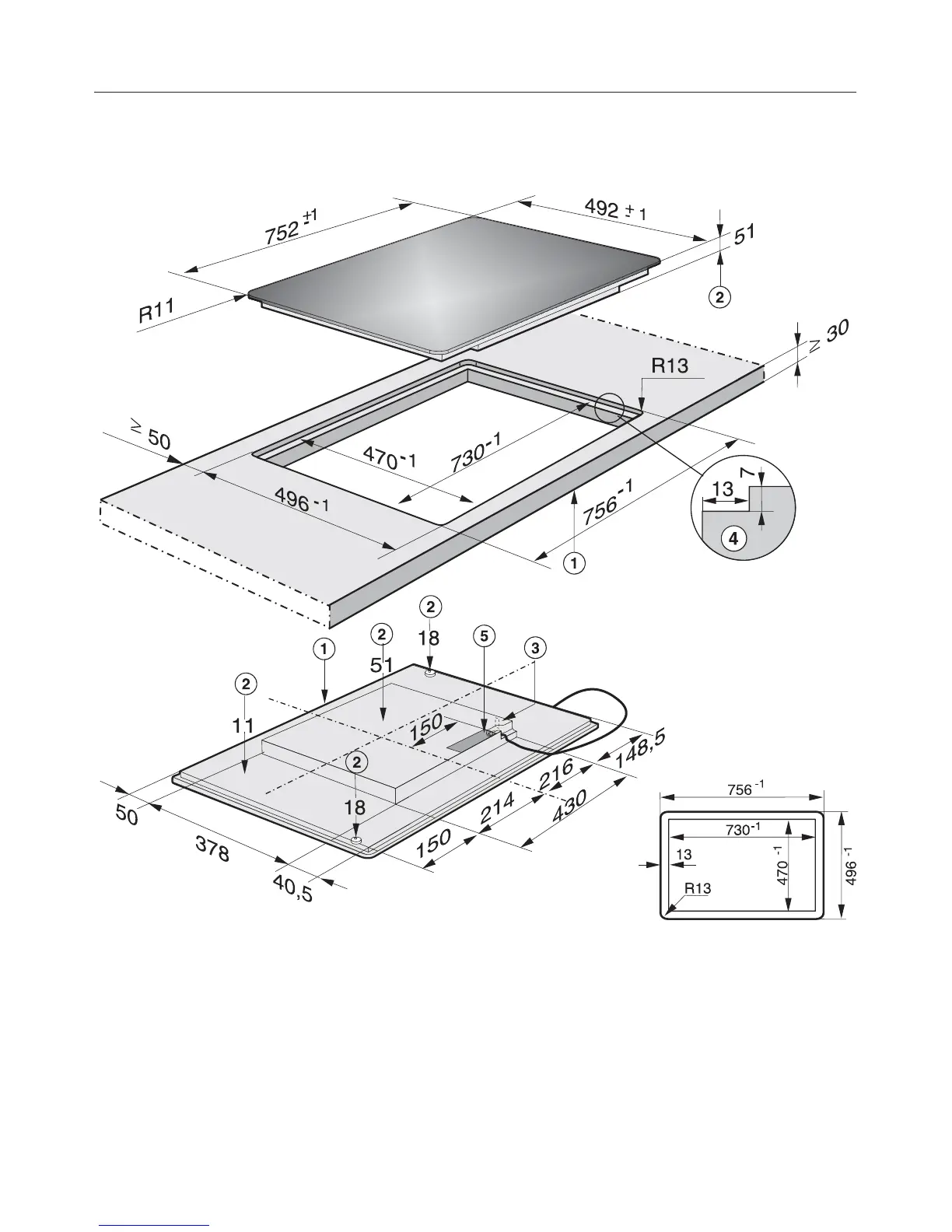

KM 6352
- suitable for installing in a glass worktop -
a Front
b Casing depth
c Connection for Miele|home
d Stepped cut-out for granite or marble
worktops
e Mains connection box
The mains connection cable (1440 mm
long) is supplied separately.
Please take careful note of the
detailed diagrams for the cut-out
dimensions in granite and marble
worktops.
Flush-fitted hobs
72
