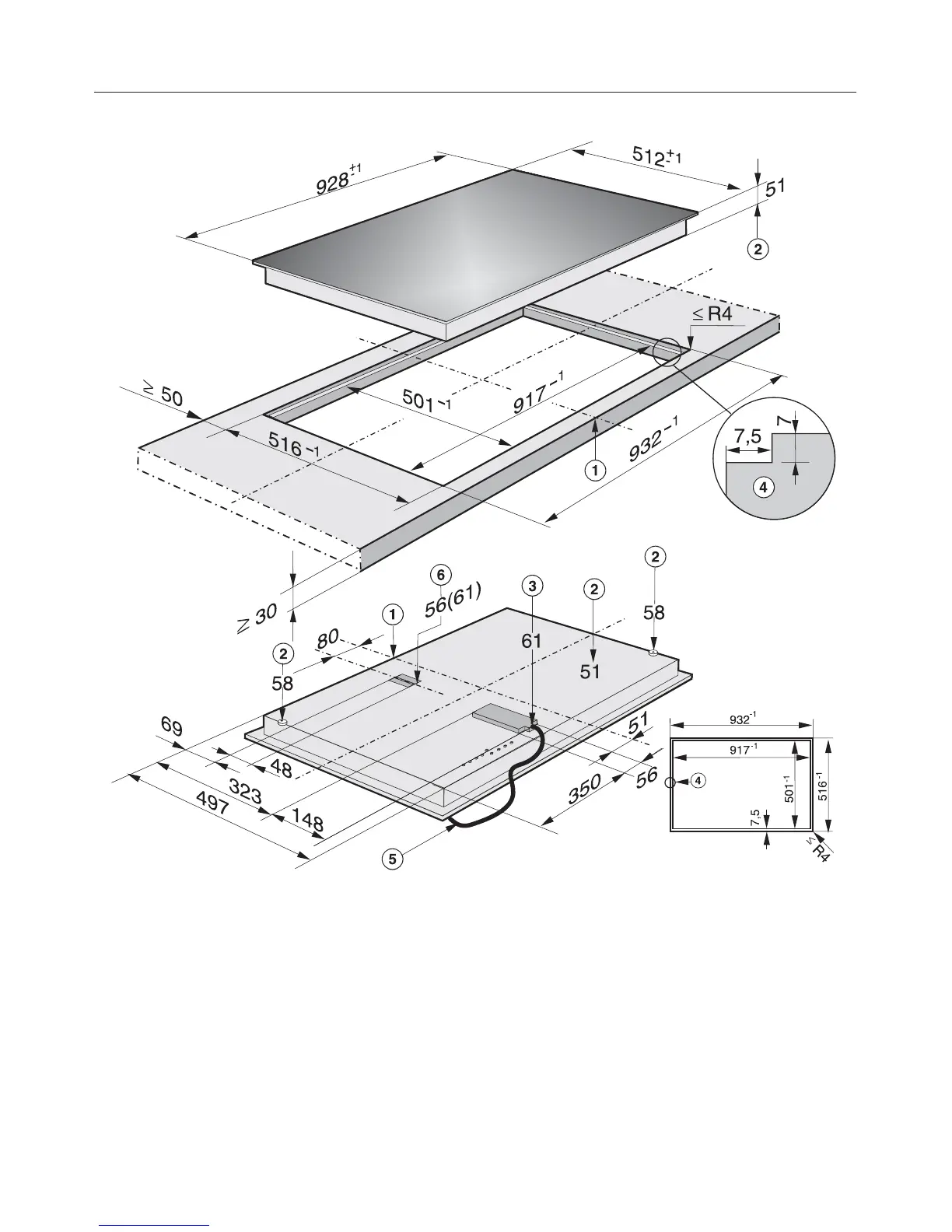

KM 6383
a Front
b Casing depth
c Casing depth including cable
exit
d Stepped cut-out for granite or marble
worktops
e Mains connection cable,
L = 1440 mm
f Connection for Miele|home
Casing depth including
connection cable for
Miele|home=61mm
Please take careful note of the
detailed diagrams for the cut-out
dimensions in granite and marble
worktops.
Flush-fitted hobs
73
