Installing the machine and tables
72

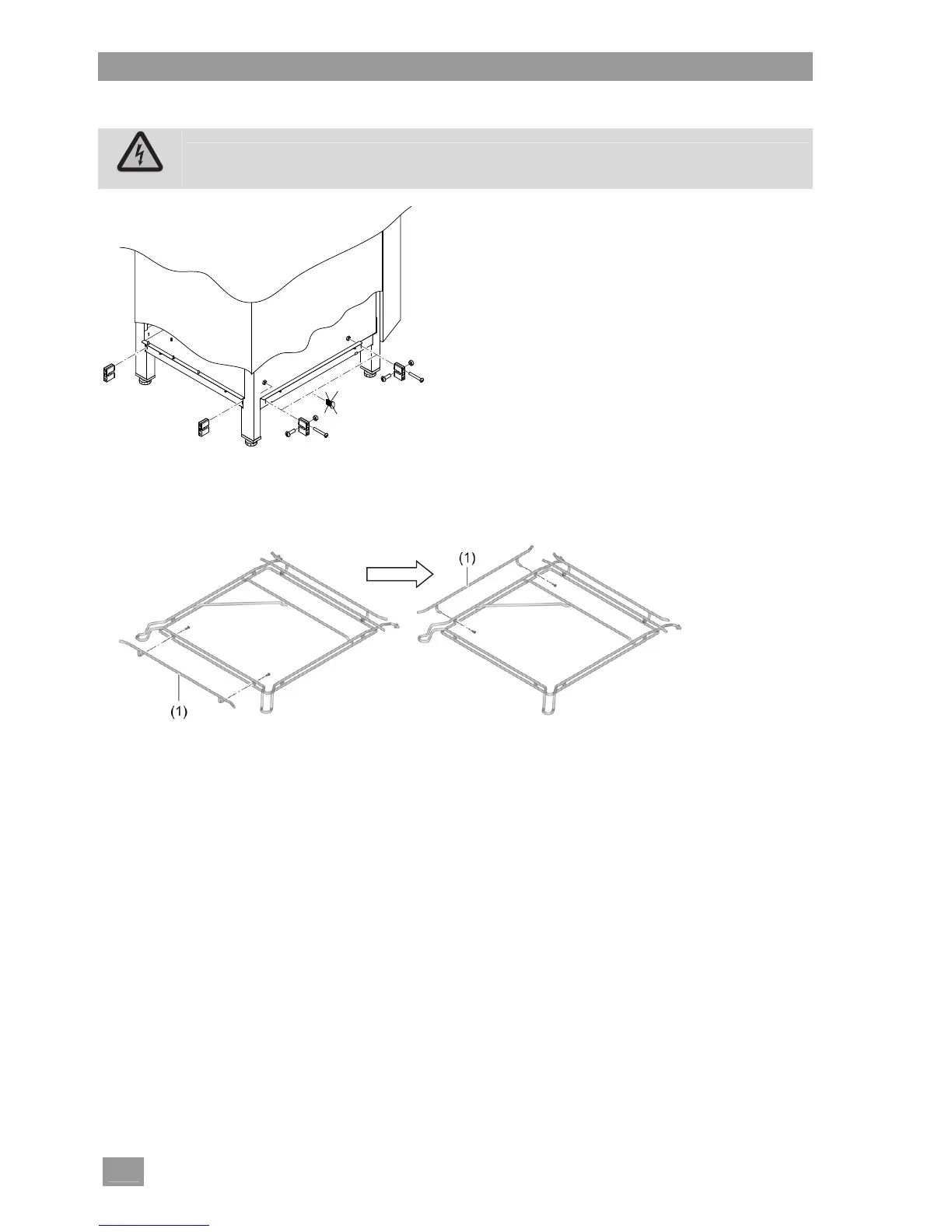

15.2 Attaching the tables
Danger
Risk of electric shock
Include tables in the equipotential bonding of the machine.
 Assemble the tables.
 Secure the brace holder to the machine.
The aluminium strut supports are in the machine.
 Secure the table to the machine.
 Connect the earthing cable from the table to the
machine.
15.3 Converting the basket support
If the machine is installed in a corner, the basket support must be converted.
 Unscrew the front guide bar (1) and attach to the left side of the basket support.
With separately available guide bars, the basket support can be converted for the following basket sizes:
 500 x 500 mm
 530 x 530 mm
 530 x 500 mm
