18 External dispenser pumps
Instead of the internal dispenser pump, external dispenser pumps can also be used. Follow the instructions
in this chapter.
18.1 Terminals
Danger
Danger to life: Live components!
Have the dispenser pumps installed and commissioned by an authorised service technician.

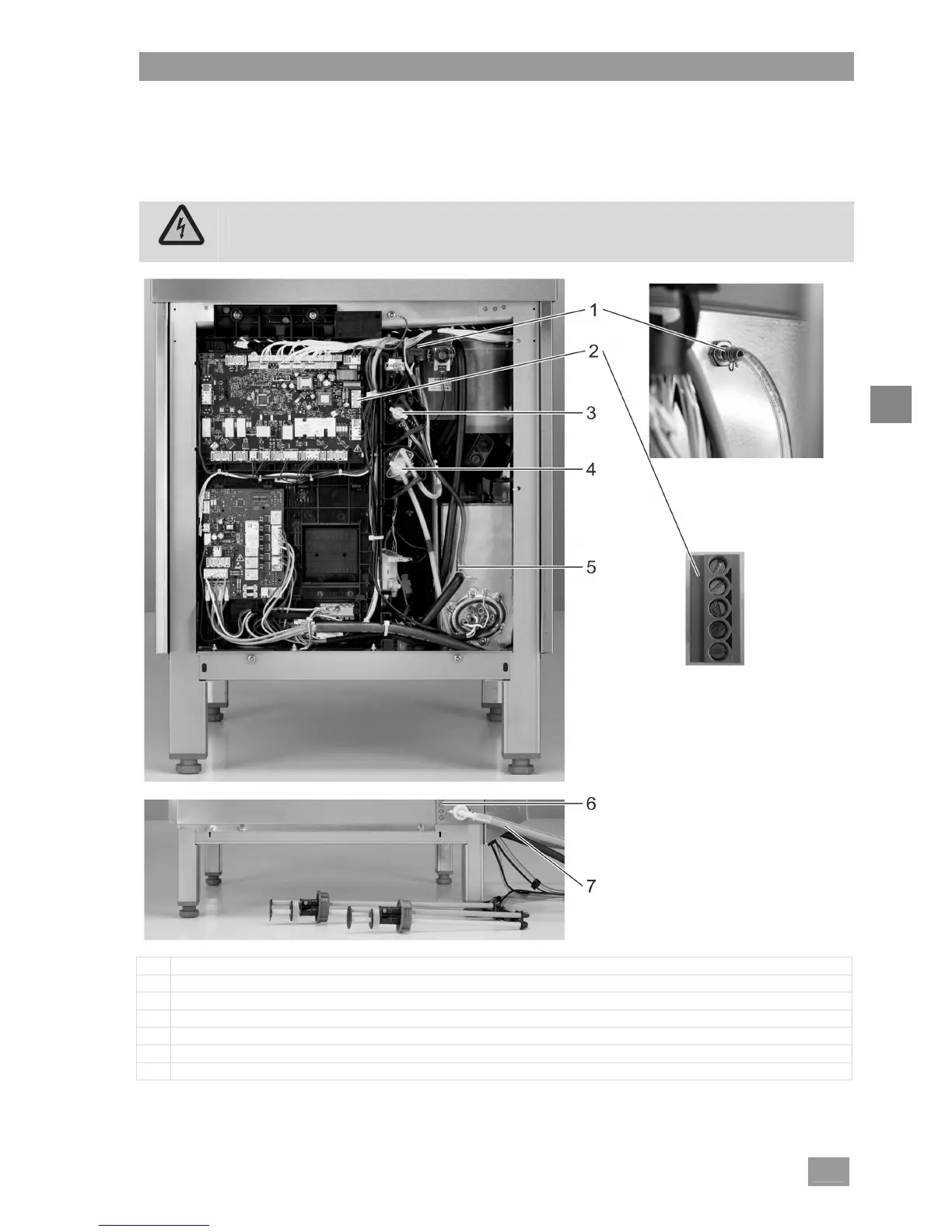

1 Detergent dosing nipple
2 Connector strip with red plug for the connection of external dispenser pumps
3 Rinse aid dispenser pump
4 Detergent dispenser pump (special equipment)
5 Rinse aid dosing nipple
6 Bushings for hoses and cables
7 Water supply hose
