External drainage of the
condensed water
The condensed water is pumped
away through the drain hose which is
located at the back of the dryer at the
bottom.
Drain hose length: ..............2m
Delivery head: .................1m
,
Do not pull on the drain hose
and do not allow it to become
kinked as this could damage it.
Drain hose connection:
1. Direct into a sink or basin.
– Hook the hose over the edge and
secure.
– Use the bow-shaped guide (see
illustration on the right).
2. Connected securely to a floor gully.
3. Connected directly to a sink drain
outlet.

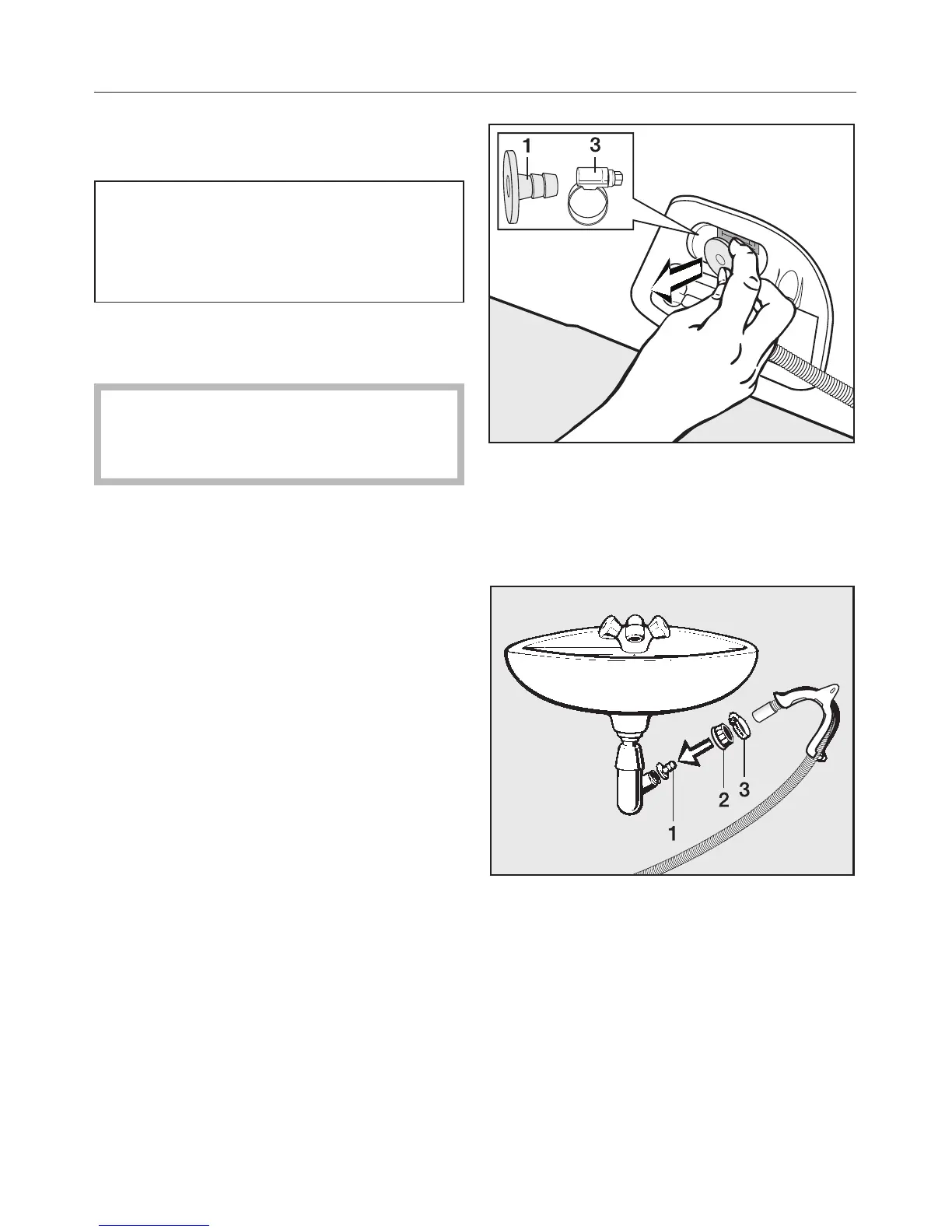

Connection to a sink drain outlet
To connect the drain hose to a sink
drain outlet you will need to use the
adapter and hose clip located at the
back of the dryer at the bottom.
^
Remove adapter 1 and hose clip 3
behind it.
^ Fit adapter 1 to the sink drain outlet
using nut 2.
^
Secure the drain hose with hose clip
3 to the nut.
Installation and connection
52
