en - Installation and planning notes
27

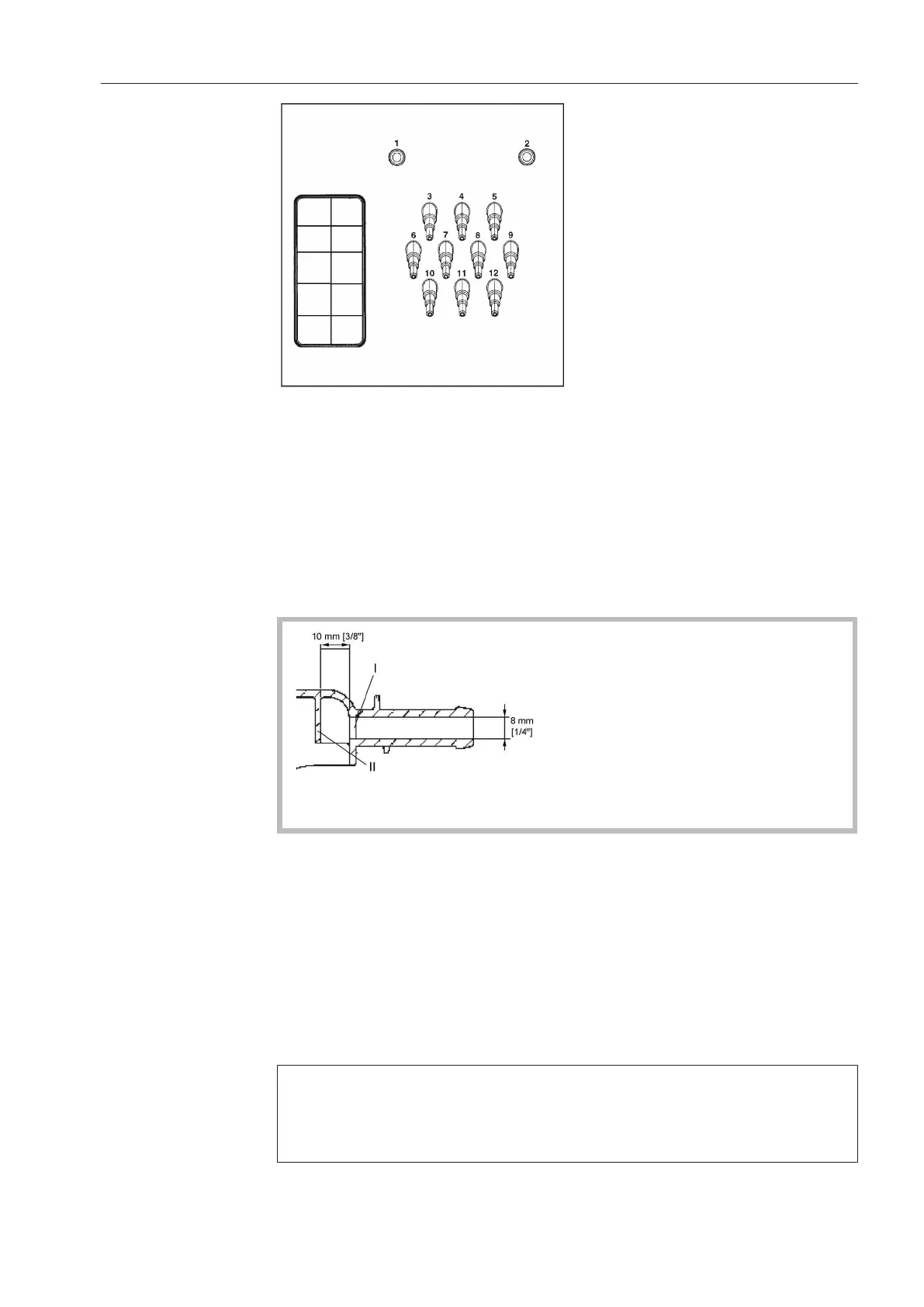

Dispenser pump connections on the back of the machine
Connections 1 and 2 are provided for viscous agents can also be
used for high pressure dispensing systems with water injection. The
dispensing systems must be fitted with a separate drinking water
safety mechanism in accordance with EN61770 and EN1717. The
maximum flow rate is 1500ml/min with a maximum flow pressure of
300kPa.
These connectors are sealed and need to be drilled open using a
8mm drill bit before connecting.
Make sure that you only drill through the first panel(I) as there is a
deflecting panel(II) 10mm behind it.
Connections3 to 12 are provided for liquid detergent. High pressure
dispensing systems with water injection must not be connected to
these connections. The connectors are sealed and must be cut to the
diameter of the hose with a small saw before they are connected.
If opened connectors are no longer required, they must be resealed
using a suitable sealant (e.g. silicone).
Connection terminals for five time-controlled dispenser pumps, which
can be operated without a multifunction module, are located behind
the cover adjacent to the electrical connection.
Calibration of the dispenser pumps and regulation of dispensing
quantities is carried out partly automatically for washing machines
fitted with an optional multifunction module. Information regarding
settings is given in the operating instructions.
