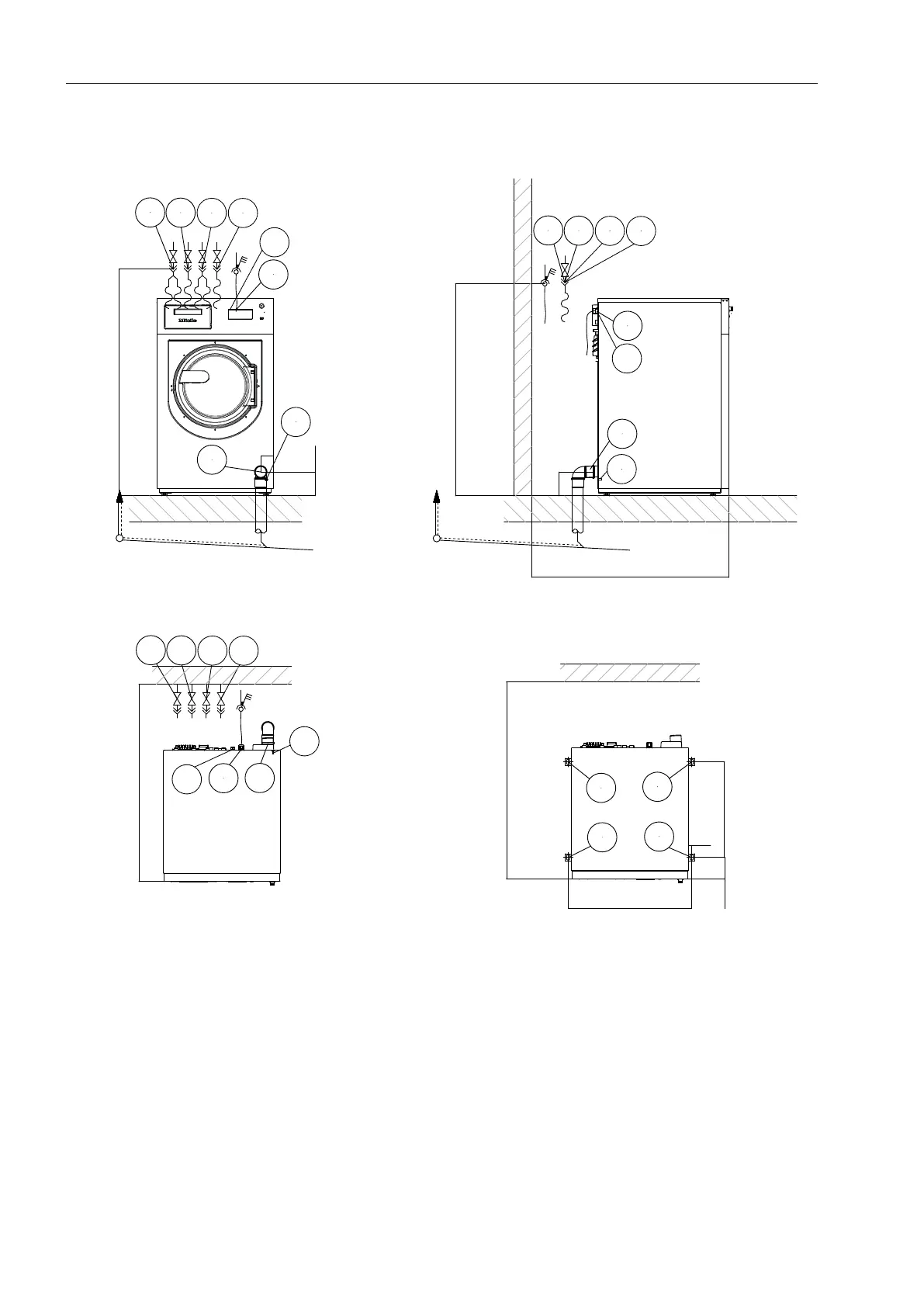

en - PWM514
32
Installation
Standard
86
1550
164
1450
164
1350
845
1350
1350
23
653
148
KW
5
6
KW WW
WW
KWH
KWH KWF
KWF
SLA
SLA
SLA
PA
PA
PA
AV
AV
AV
KW WW
KWH
KWF
EL
EL
BB
BB
EL
Dimensions quoted in millimetres
KW
Cold water
WW
Hot water
KWH
Hard water (cold)
KWF
Cold water for liquid dispensing
SLA
Connection for peak-load negotiation
EL
Electrical connection
AV
Drain valve
PA
Connection for equipotential bonding
B
Drilled hole
