Miele S 421i - Figure 1-27: S 3 Xx Components

Technical Information
13
S
2xx, S 3xx & S 4xx Canister Vacuums

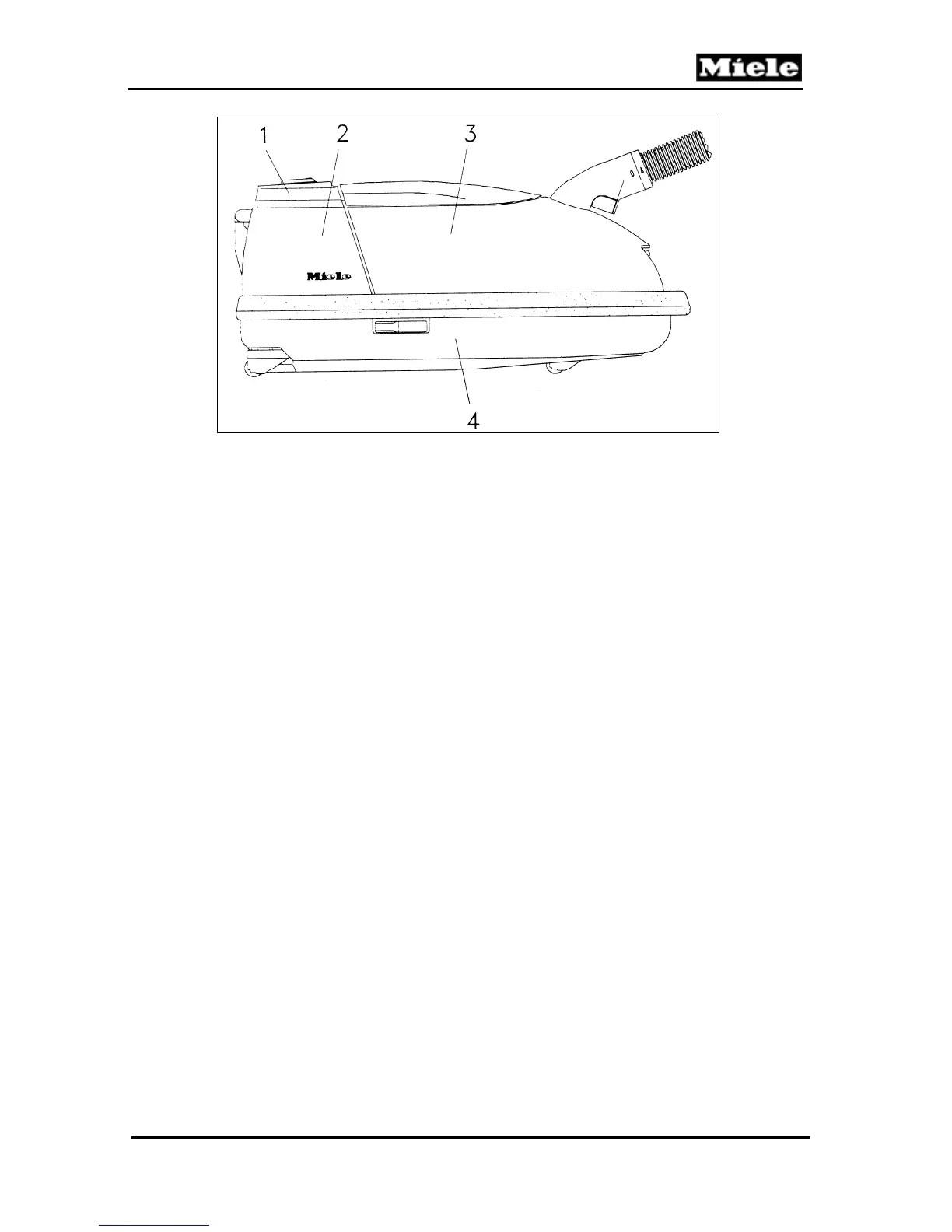

Figure 1-27: S 3xx Components
These vacuum cleaners consist of 4 main parts:
1) Switch unit
− Suction power selector or electronic, depending on model
− “On/Off” switch
− Overheating warning light, depending on model
− Group plug
2) Rear casing
− Filter system
− Cable rewind
− Motor
− Park System switch
− Plug connectors
3) Dustbag compartment casing
− Accessory compartment with lid
− Suction hose connection with shutter
− Dustbag change indicator
− Accessories
− Hinges
− Slip-ring system for electrobrush, S 324i and S 346i only
4) Casing base
− Motor protection filter
− Dustbag holder
− Bumper strip
− Storage slot (for floor attachment)
− Electrobrush socket, depending on model
− 3 castors
