Technical Information
43
S
2xx, S 3xx & S 4xx Canister Vacuums

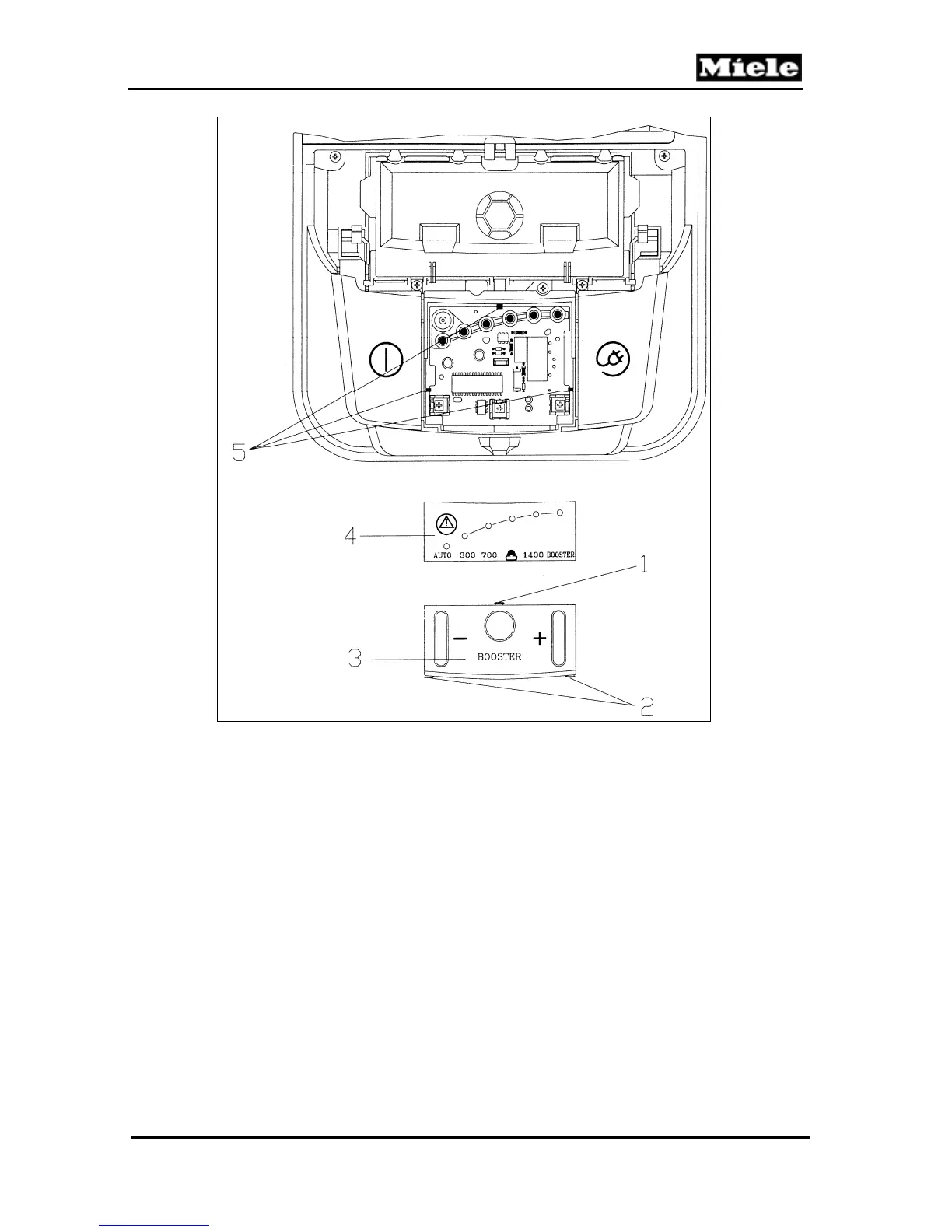

Figure 5-26: S 4xx Electronic Removal
5.11 Fault/Overheat Indicator Lamp
5.11.1 S 2xx
Remove the foot switch assembly (Section 5.8). The indicator lamp(s) should
always be pushed out from below as they are clipped into place.
5.11.2 S 4xx
The lamp can be removed from below by gently pulling its connection wires.
5.12 Plug Housing
5.12.1 S 25x
1. Remove the cap and foot switch assemblies (Sections 5.6 and 5.8).
2. Release the retaining clips and remove the plug housing.
