Miele SmartLine Series - Surface-Mounted Worktop Cutout

Installation
*
I
N
S
T
A
L
L
A
T
I
O
N
*
53
Worktop cutout – surface-mounted
Information for calculating the cutout
The elements overlap the worktop by 10mm.
When installing several elements, a distance of 2mm must be observed between
the individual elements.
Calculating cutout dimensionB
1 element = Width of the element minus 10mm on the right, minus 10mm on the
left
Several elements = Total width of the elements plus 2mm distance between the
elements, minus 10mm on the right, minus 10mm on the left.

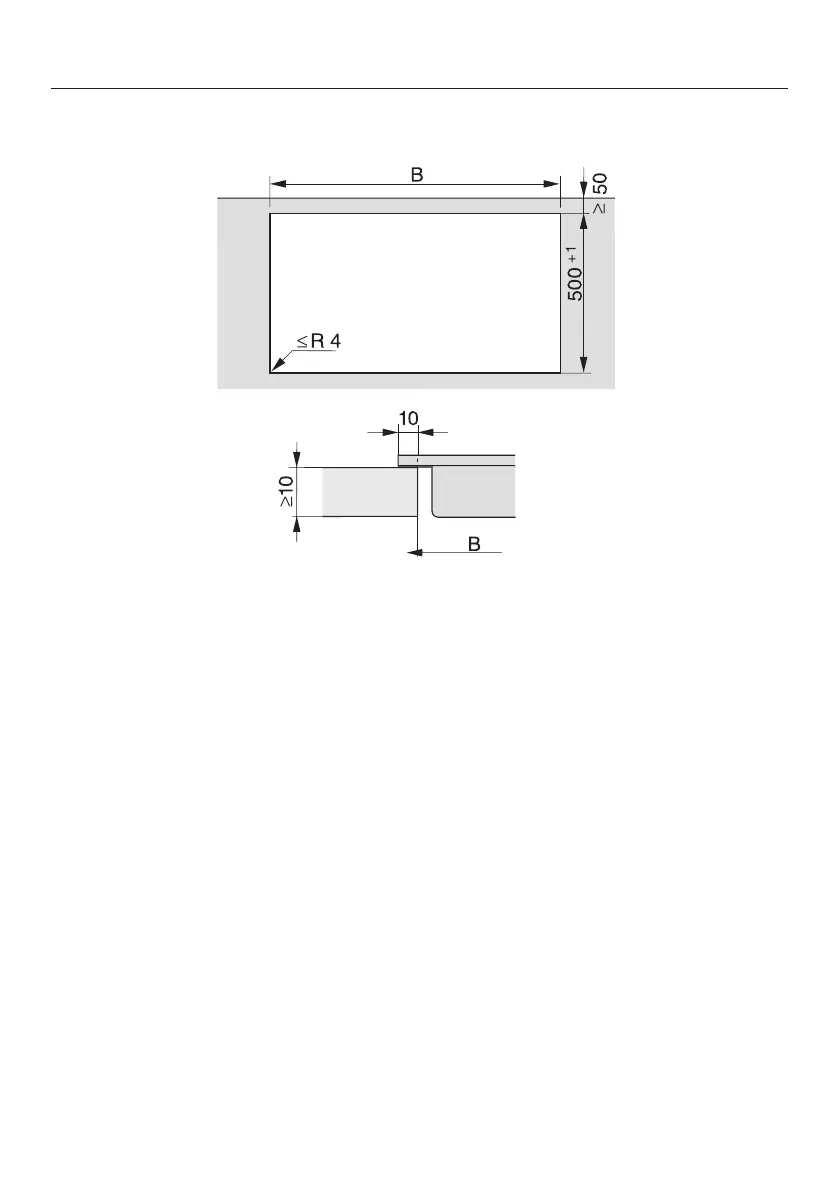

Some examples are illustrated below.
