Miele SmartLine Series - Flush-Fit Worktop Cutout

Installation
*
I
N
S
T
A
L
L
A
T
I
O
N
*
62
Worktop cutout – flush-fit
Natural stone worktop Wooden worktop
* 7
+
0.5
mm with CS7611FL

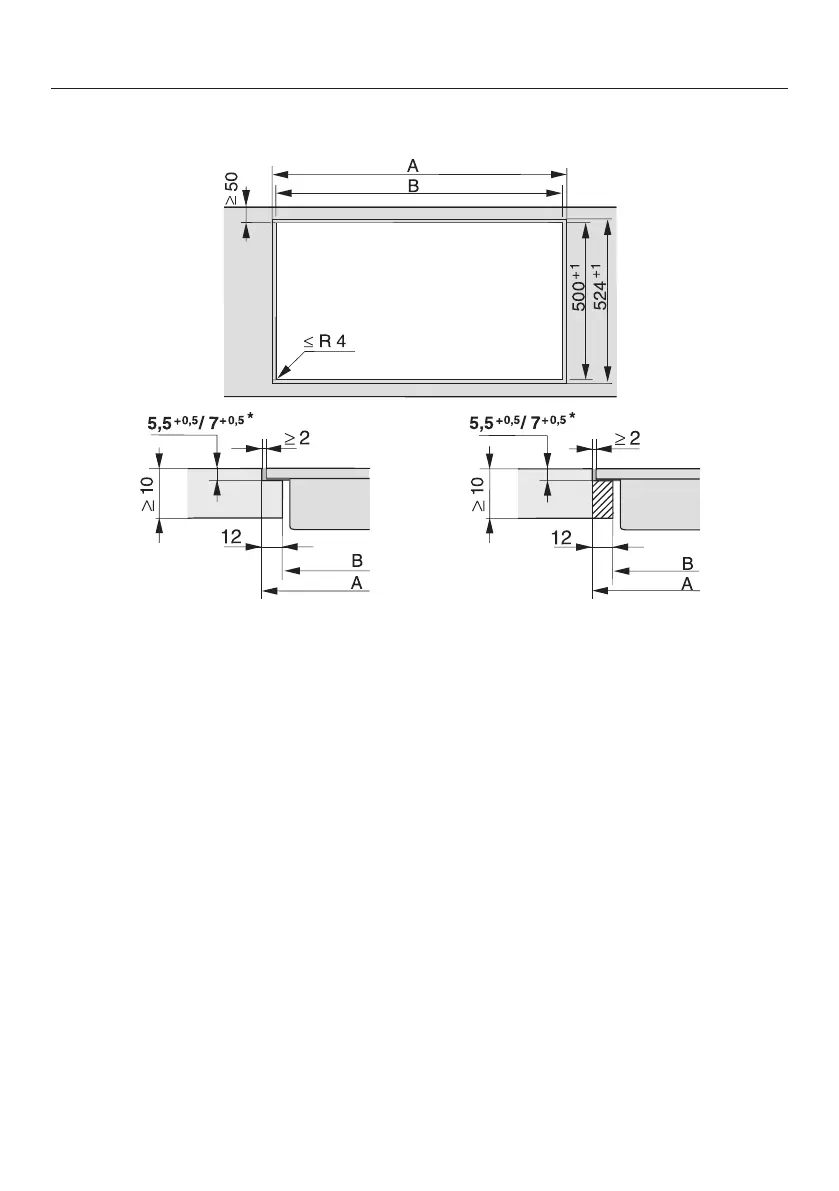

Information for calculating the cutout
The elements overlap the worktop by 10mm.
When installing several elements, a distance of 2mm must be observed between
the individual elements.
Calculating cutout dimensionA
1 element = Width of the element plus 2mm on the right, plus 2mm on the left.
Several elements = Total width of the elements plus 2mm distance between the
elements, plus 2mm on the right, plus 2mm on the left
Calculating cutout dimensionB = Cutout dimension A minus 12mm on the right,
minus 12mm on the left.
Some examples are illustrated below.
