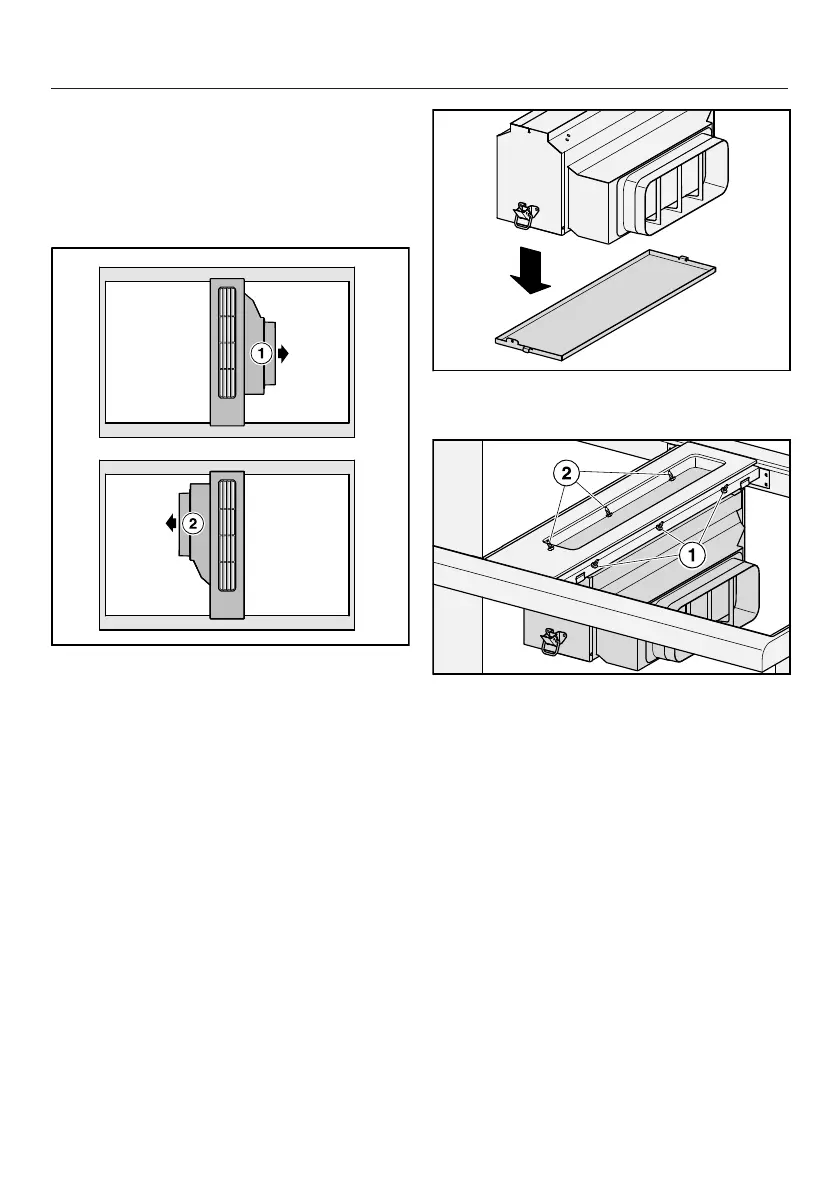

Installing the countertop extractor
The countertop extractor can be
installed with the connector for the air
duct on either the right or the left-hand
side.
a
Connector for air duct on the right
b
Connector for air duct on the left
Stick the sealing strip supplied under
the edge of the cover. Do not apply
the sealing strip under tension.
Fit the clips onto the spacer bars.
Guide the control cable downwards
between the spacer bars.
Fit the cover onto the spacer bars.
Remove the grease trap from the
casing.
Fasten the casing from the inside with
the screws on the right and left
sides (3 in each case).
Fasten the grease trap.
