Miele SmartLine - Installation Dimensions - Flush-Fit

Installation
*INSTALLATION*
60

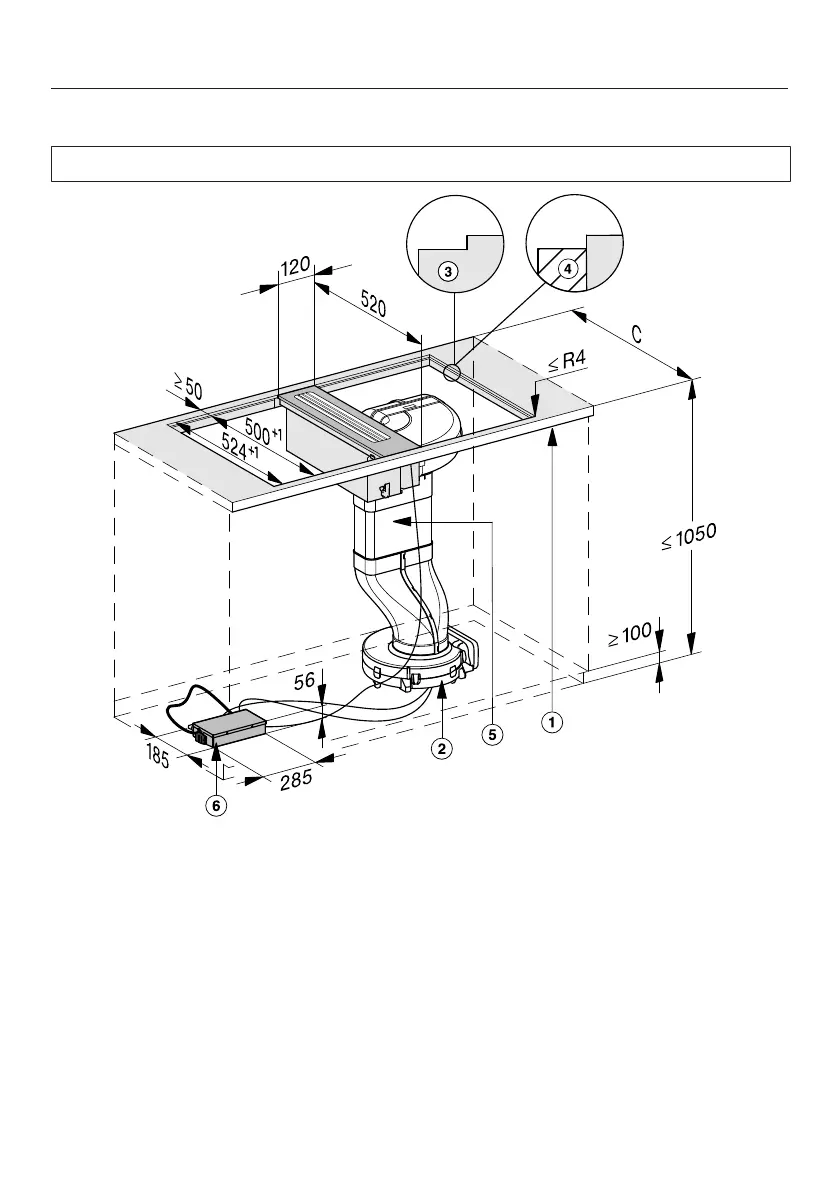

Installation dimensions–Flush-fit
All dimensions are given in mm.
a
Front
b
Fan
In the plinth on the floor
c
Stepped cutout (for detailed illustrations, see “Installation – Worktop cutout –
flush-fit”)
d
12mm wooden frame (not supplied, for detailed illustrations, see “Installation –
Worktop cutout – flush-fit”)
e
Air duct
(supplied as accessory)
f
E-box
