Installation
*INSTALLATION*
73
Length compensation – worktop
depth greater than 600mm

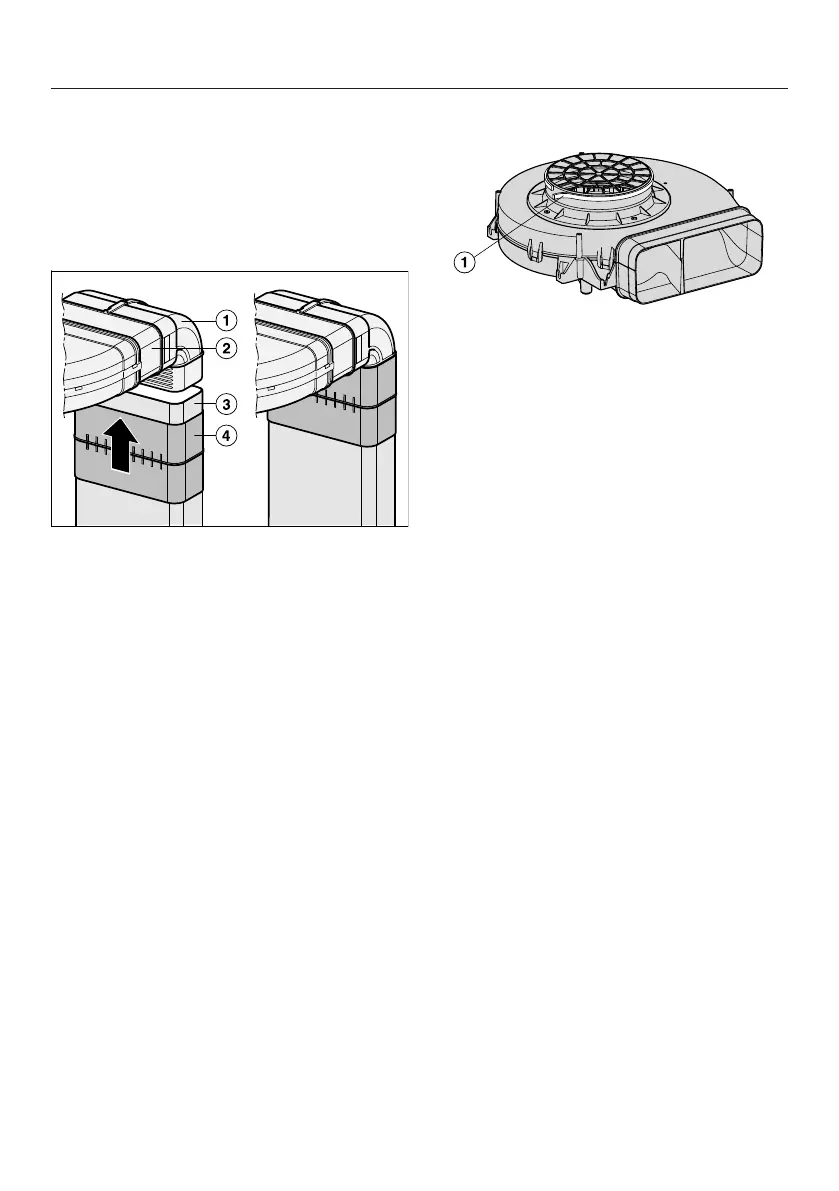

Divide the flat ducting into 2 pieces. 1
piece must correspond to the
difference between 600mm and the
worktop depth.
Insert the duct piece into the
horizontal bend.
Connect the duct piece with the
short bend. Fix the connection
with the sealing strip.
Adapt the remaining duct piece to
the height of the base unit.
Slide the length compensation
over the adapted duct piece. Hold
the adapted duct piece under the
short bend. Slide the length
compensation over the short
bend from below. Fix the
connection with the sealing strip.
Installing the fan motor
a
Sealing strip
Stick the sealing strip supplied to the
fan connection.
