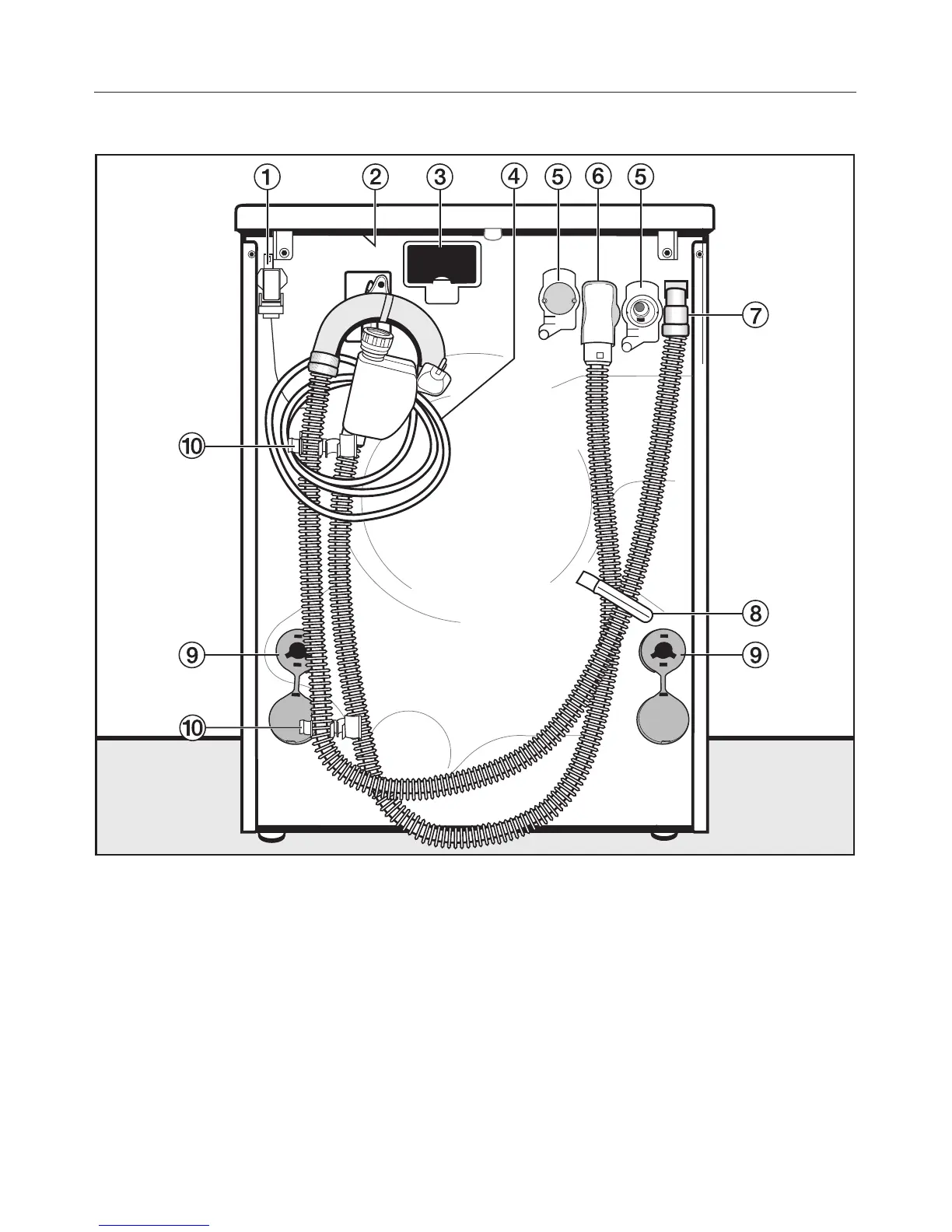

Rear view
a Electrical connection for the automat
-
ic detergent dispensing unit
b Protruding lid for holding when
moving the machine
c Slot for Miele|home communication
module
d Electrical connection cable
e Water inlet and drainage
connections for the automatic
detergent dispensing unit
f Inlet hose with "Waterproof" system
g Drain hose
h Transport clip for inlet and drain
hoses
i Safety cap for transit bars
j Transport clip for inlet and drain
hoses and for storing transit bars
when not in use
Installation and connection
72
