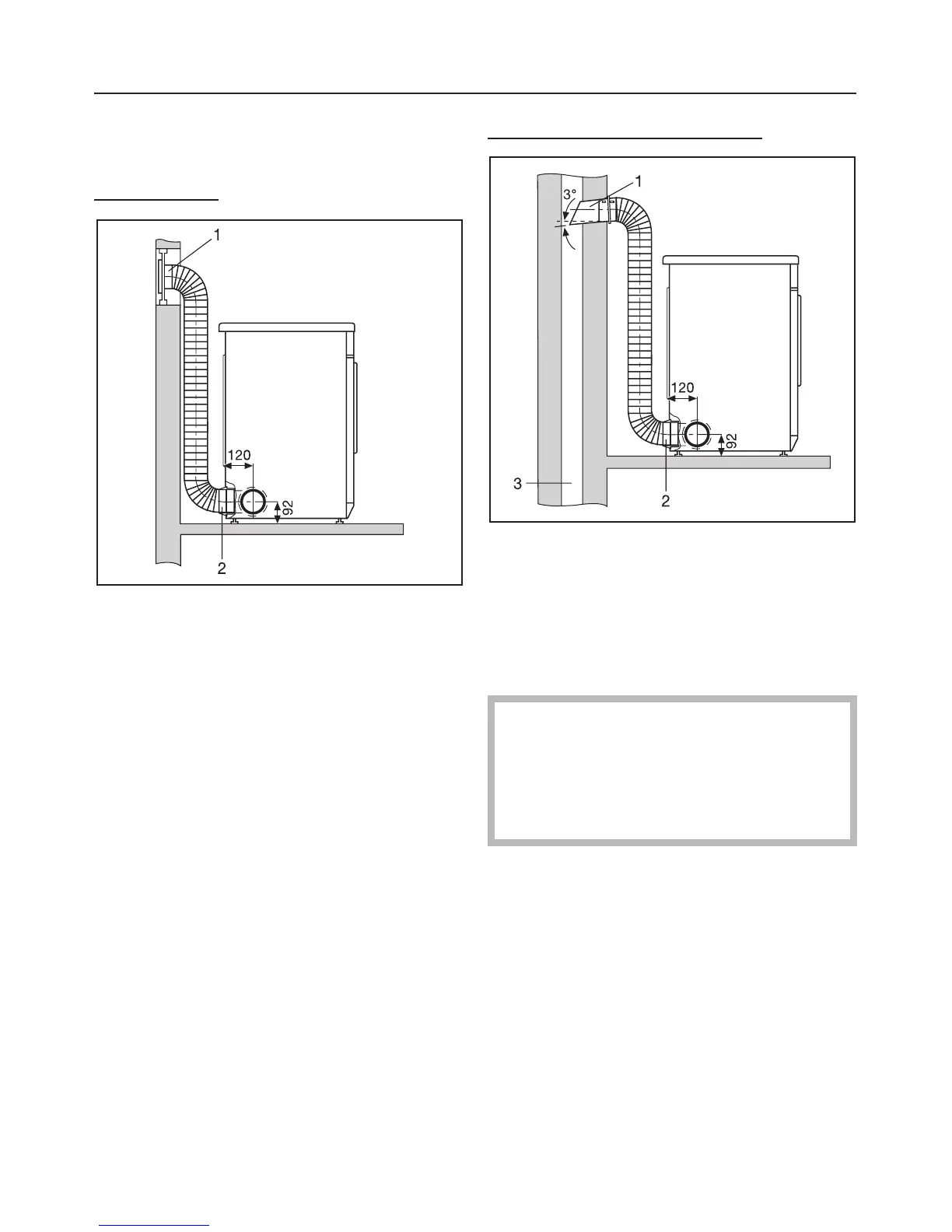

Installation examples - venting sys
-
tem with flexible hose
Window vent
1. Window vent kit (fitted in a "plexi-
glass" pane)
(separate fitting instructions are sup-
plied with the Miele window vent kit)
2. Adapter for flexible hose
Connection to an exhaust flue
1. Pipe with connection piece
(= supplied with the Miele wall vent
kit)
2. Adapter for flexible hose
3. Exhaust flue insulated against damp
,
The ducting must not be vented
into a chimney or vent flue which is
in use, nor should it be connected to
ducting which ventilates rooms with
fireplaces.
Installation - venting
40
