Installation and connection
45

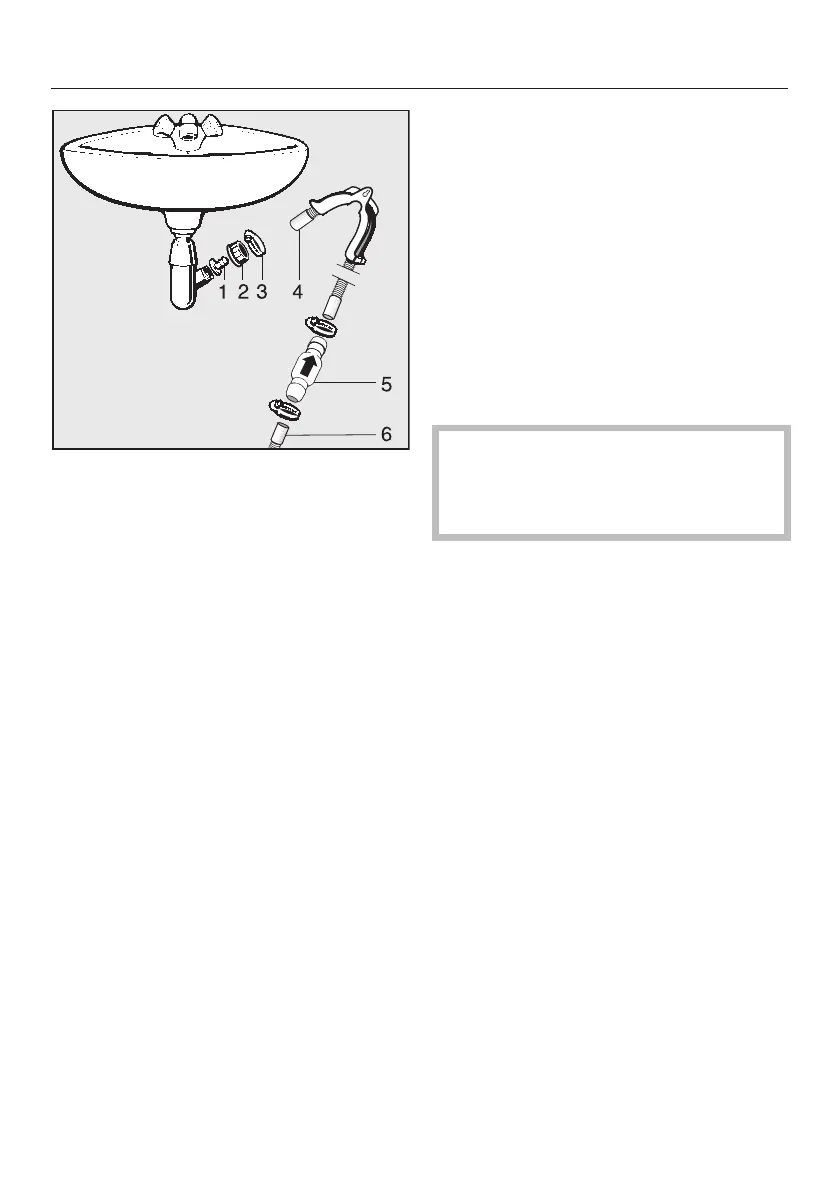

1. Adapter
2. Nut
3. Hose clip
4. End of the hose (secured with the
hose holder)
5. Non-return valve
6. Tumble dryer drain hose
Fit the adapter 1 to the sink drain
outlet using the nut 2.
The nut is usually fitted with a washer
which must be removed.
Attach the end of the hose 4 to the
adapter 1.
Use the hose holder.
Use a screwdriver to tighten the hose
clip 3 up close to the nut.
Fit the non-return valve 5 to the
tumble dryer drain hose 6.
The non-return valve 5 has to be
fitted so that the arrow points in the
direction of flow (i.e. towards the
sink).
Secure the non-return valve using
hose clips.
