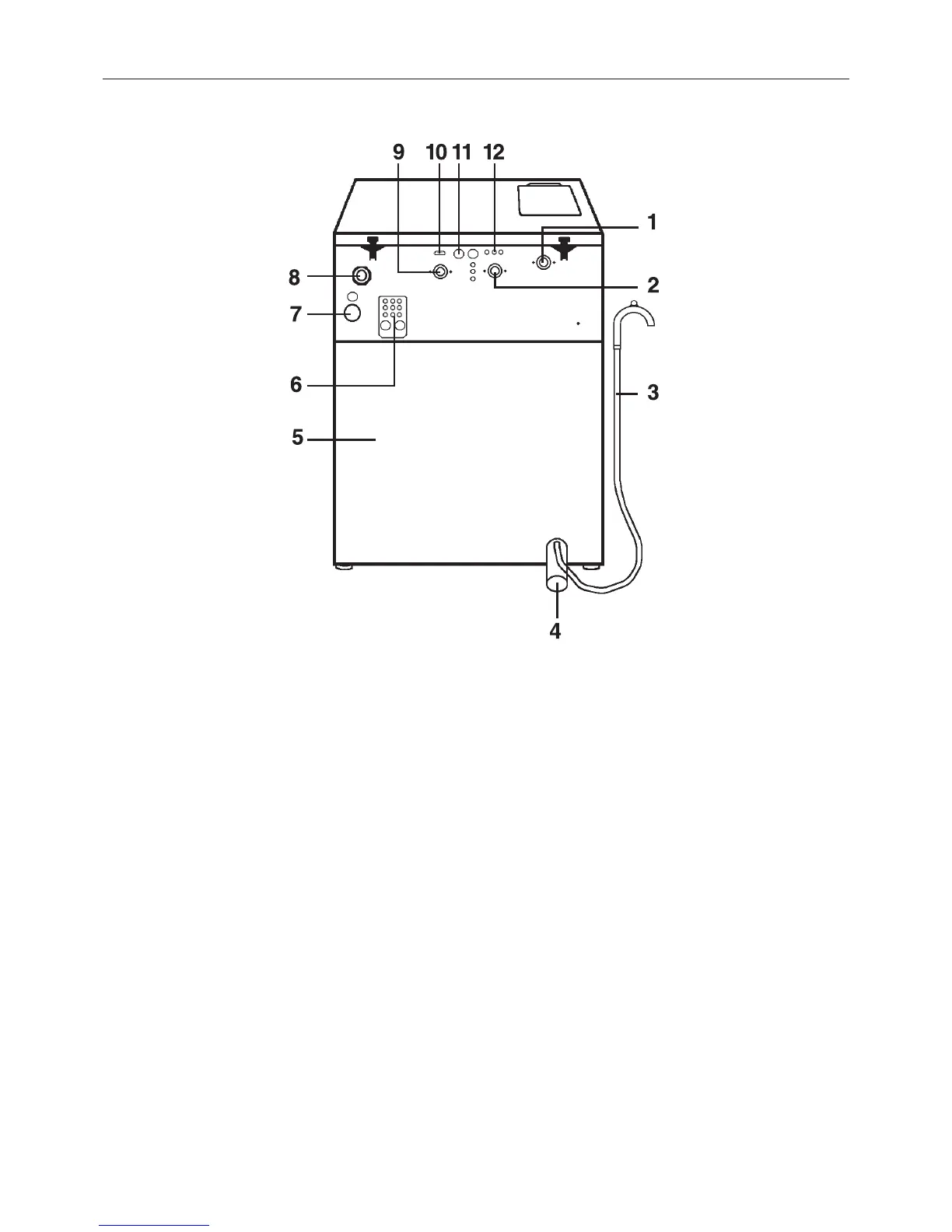

Rear view
1 Cold water connection
2 Warm water connection
3 Drain hose (for drain pump)
4 Drain (for drain valve)*
5 Back panel
6 Liquid dispenser drawer
Liquid dispensing system
* not available in W 6071
7 Air vent
8 Cable entry for electrical connection
9 Cold water connection for the
liquid dispensing system
10 Printer Interface
11 Cable connection for
3 dispenser pumps
12 Cable connection for the liquid
dispensing system
Guide to the washer
