Installation and connection
56

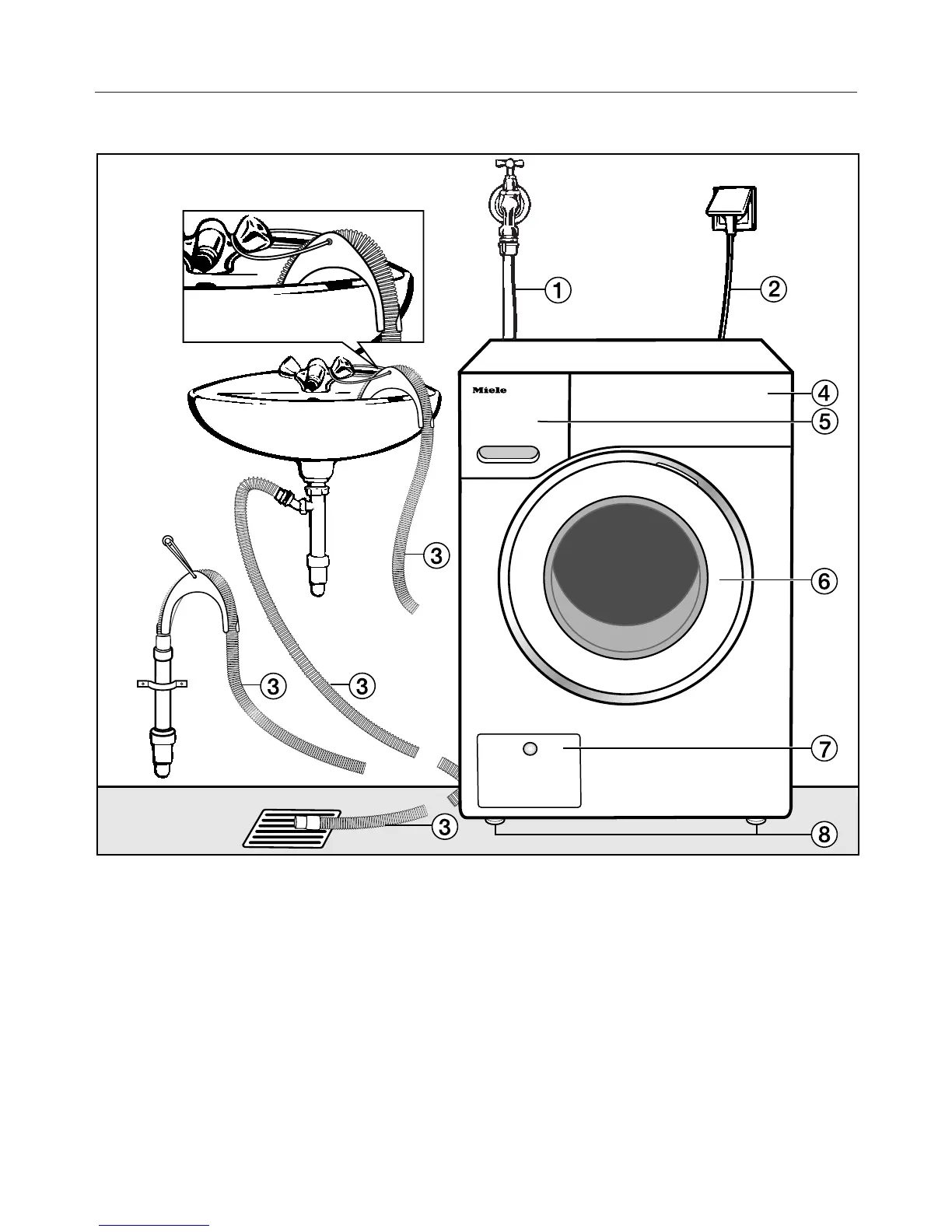

Front view
a
Inlet hose (tested to withstand pres-
sure of at least 7,000 kPa)
b
Electrical supply cable
c
Flexible drain hose (with detachable
swivel elbow)
d
Control panel
e
Detergent dispenser drawer
f
Door
g
Access to drain filter, drain pump and
emergency release
h
Four height adjustable feet
