5. FIXING RACK AND END-RUN DEVICE

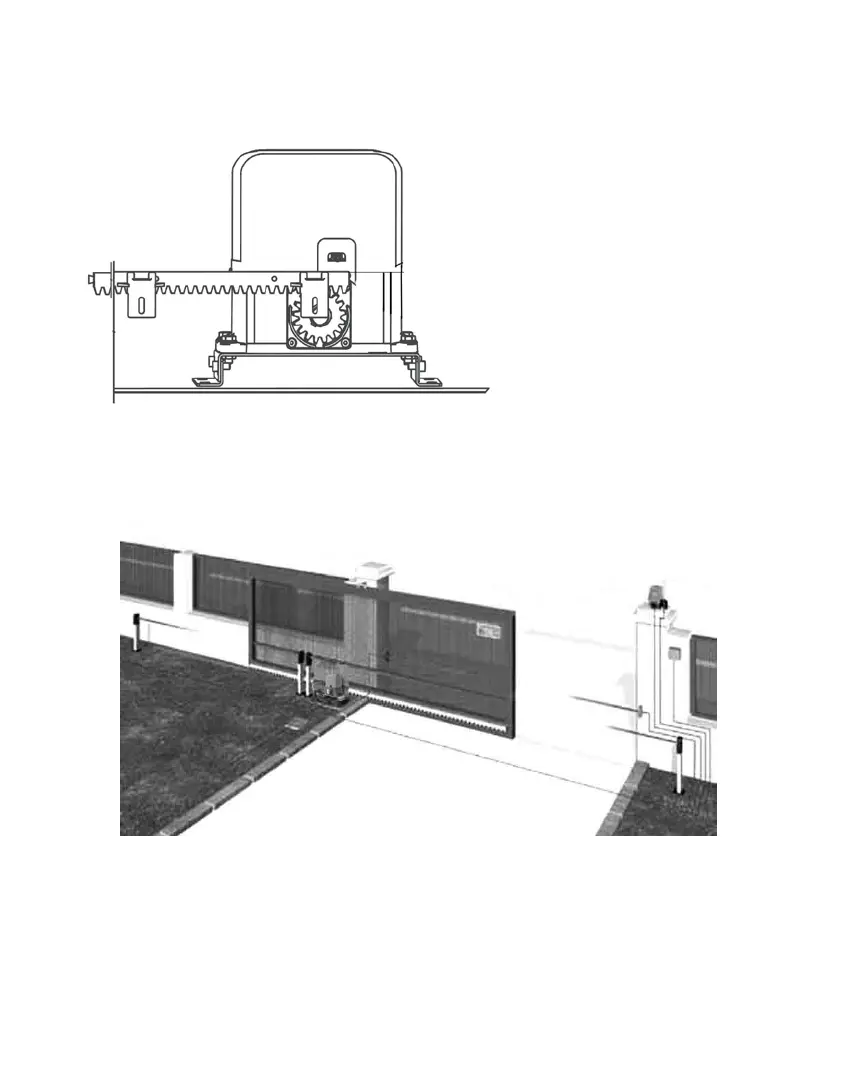

Position the first element of
rack on the cogwheel,
previously unlocked, as in Fig.
5. Following fix the element to
the gate, in the way you wish,
by applying to it the other
elements of rack necessary,
ensure that all be united and
aligned.
Locate the desired position
and fix end-run device (F) on
Rack as indicated in the previous Fig. 2, those with grains included. Close the
release lever and perform the necessary electrical connections.
6. THE ELECTRICAL PLANT SET-UP
Fig.6
Lay out the electrical installation fig. 6 with reference in force for electrical
installation. The mains power supply connections must be kept totally separate
from the service connections (photocells, electric edges, control devices etc.).
